Autel Robotics
EVO II PRO 6K V3
EVO II PRO 6K V3
Couldn't load pickup availability
EVO II PRO V3

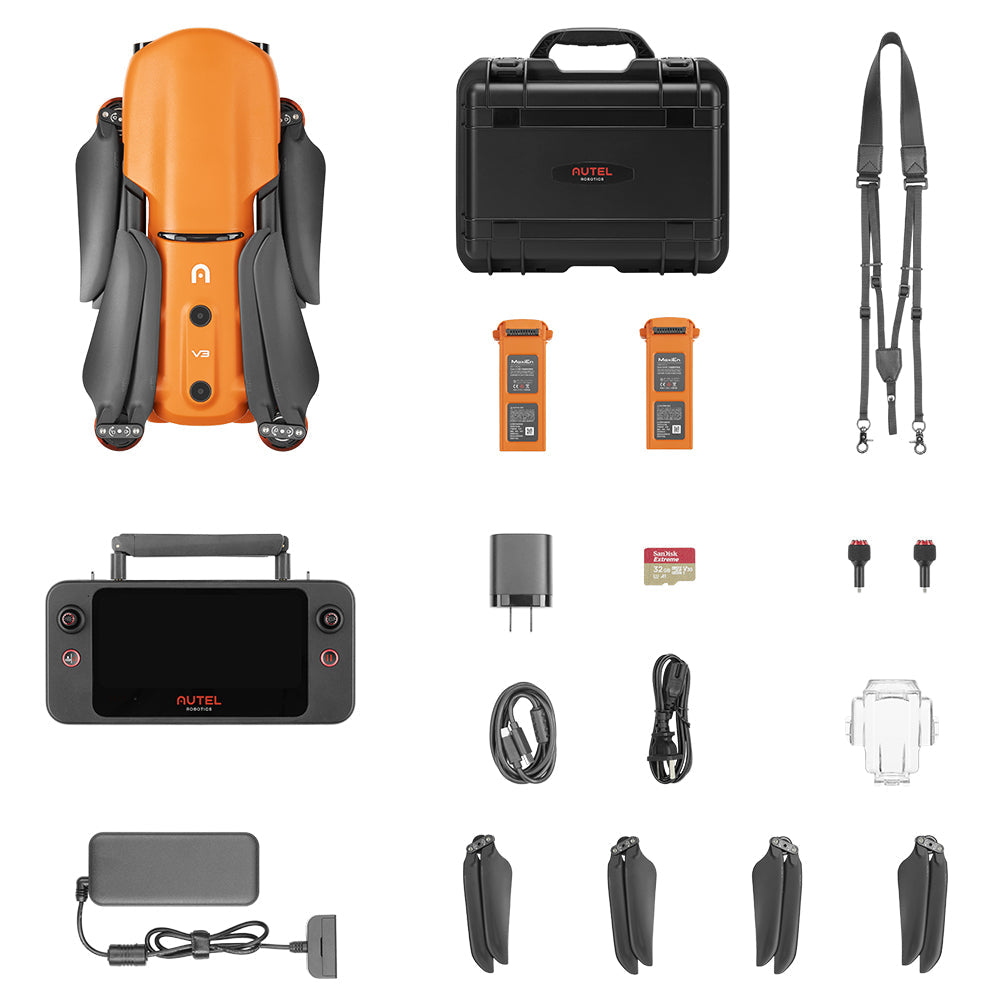

In the Box
Aircraft (Battery, Propeller, Gimbal cover, 32GB SD Card included) |
1 |
Remote Controller (sticks included) |
1 |
Spare Propellers (pairs) |
1 |
Spare Control Stick (pair) |
1 |
Spare Battery |
1 |
RC Lanyard |
1 |

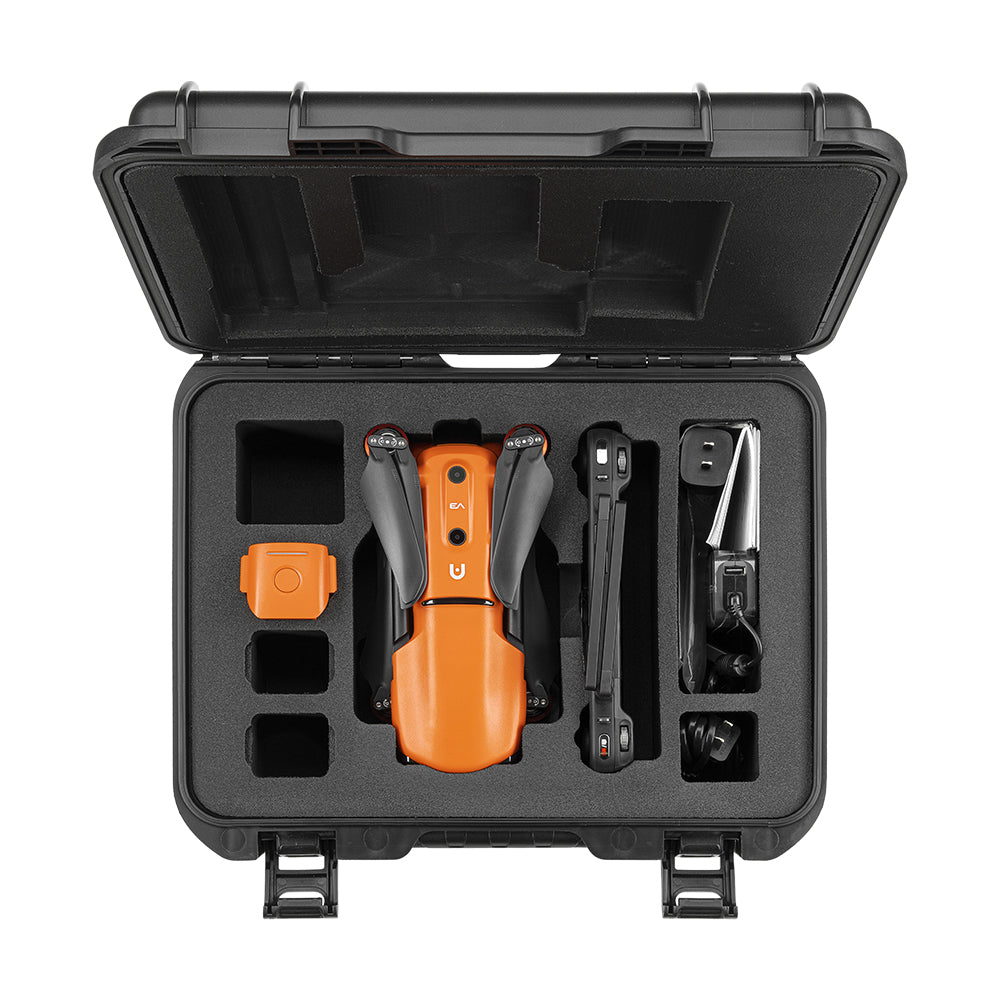

Carry Case |
1 |
Quick start guides |
4 |
Battery Charger + Power Cable |
1 |
RC Charger |
1 |
RC Charging Cable |
1 |
Exceptional Image Quality: With Sony's new 20 megapixel 1-inch CMOS image sensor, the EVO II Pro V3 supports up to 6K video resolution with stronger noise suppression and higher frame rates. The lens's adjustable aperture range of f2.8 to f11 and a maximum ISO of 44000 enables the photographer to enhance their control and creative freedom.
1-inch CMOS;20MP;6K/30FPS Video; F2.8~F11 Aperture
Moonlight Algorithm 2.0: Succeed in night photography with EVO II Pro V3's 6K 1" CMOS and Autel Robotics' Moonlight Algorithm 2.0.
4K HDR Video: For the ultimate in picture quality, the EVO II Pro V3 pairs the brilliance of 4K clarity with the brightness, color and detail of High Dynamic Range (HDR). Previously hidden areas of dark shadow and sunlight are now full of clarity and details.
Post-Production Flexibility with 12-bit DNG: The EVO II Pro V3 can take 12-bit DNG photos and is capable of recording up to 68.6 billion colors with 64 times the color rendering power of 10-bit, allowing greater flexibility in post-production.
Hyper-Lapse Photography in 6K: You can enjoy your favorite moments at any time, free from post-processing as 6K mobile time-lapse as video can be exported right after recording, and JPEG/RAW format are also supported.
SkyLink 2.0 Video Transmission
The EVO II Pro V3 is upgraded with Autel's all-new SkyLink 2.0 Video Transmission technology.
15KM: Fly farther with HD video transmission up to 15km.
QHD: Obtain critical details with QHD video within 1km.
2.4G/5.8G/900MHz: Support tri-band communication and can automatically frequency hop for maximum anti-interference capability
*900MHz is only applicable for FCC countries.
360° Obstacle Avoidance: Equipped with 19 groups of sensors including 12 visual sensors, the main camera, ultrasound, IMUs and other sensors enable the building of three-dimensional maps and path planning in real-time.
*Please refer to the manual for details on obstacle avoidance and its limitations, which may or may not work in limited lighting environments, under direct strong sunlight, or across thin tree branches or wires.
Maximum Performance Endless Possibilities:
Maximum Flight Time 40 minutes
Maximum Transmission Range 9.3miles (15km)
Maximum Wind Resistance 39mph (17m/s)
Maximum Flight Speed 45mph (20m/s)
Autel Smart Controller SE: Smart Controller SE comes with a 6.4-inch OLED touch screen and the latest gen 8-core processor for HD image transmission. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 15km away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all-weather performance.
6.4-Inch OLED Screen; 15km Transmission Range; Removable Battery; 3rd Party Apps; -10℃ to 40℃ Operating Temperature
Live Deck 2: Stream Anywhere
EVO II Pro V3 supports multi-port HDMI real-time output to meet the requirements of projection monitoring and live streaming with Live Deck 2.
1080P/60FPS Video Stream; Three Auto-Switch Bands; 12km Transmission Range; 5-hr Battery Life; IP43 Resistance
Aircraft |
|
Takeoff weight | 1191 g |
Wheelbase | 397 mm |
Size (L*W*H) | 230*130*108mm(folded) 260*355*108mm(unfolded) |
Maximum service ceiling altitude | 7000 m |
Max horizontal flight speed | 20m/s (Ludicrous) |
Max flight time (no wind) | 40 min |
Operating temperature range | -10℃ ~ 40℃ |
Maximum resistance to wind | Level 8 |
Hovering accuracy | Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GPS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GPS works normally) |
GNSS | GPS/Beidou/Glonass/Gallieo |
RC and Image Transmission | |
Operating frequency | 902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz (non-Japan) 5.650-5.755GHz (Japan Only) |
Transmission power | FCC:≤33dBm CE:≤20dBm@2.4G,≤14dBm@5.8G SRRC:≤20dBm@2.4G,≤33dBm@5.8G/5.7G |
Max Transmission Distance (unobstructed, free of interference) | FCC:15km CE:8km |
Display screen | 2340x1080 60fps |
Battery | 1900mAh |
Operating time | ~2 hours (Max. Brightness) ~4 hours (50% Brightness) |
Charging time | 90 minutes |
Internal Storage | ROM 128GB + expandable storage via micro-SD card |
Camera | |
Sensor | 1 inch CMOS; 20M pixels |
Lens | FOV: 82° 35 mm format equivalent focal length: 29 mm Aperture: f/2.8 - f/11 Focus range: 0.5 m to infinity |
ISO range | Video: 100-44000 Photo: 100-6400 |
Shutter speed | Photo mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/frame rates |
Zoom | 1-16x (up to 3x lossless zoom) |
Photo mode | Single shot/Burst shooting/AEB/Time Lapse/HDR |
Maximum photo size | 5472*3648 (3:2) 5472*3076 (16:9) 3840*2160 (16:9) |
Image Format | JPG (default) / DNG / JPG+DNG |
Photo mode | 5472x3076P30/P25/P24 3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P60/P50/P48/P30/P25/P24 |
Video format | MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) |
Max bitrate | 120Mbps |
