EVO II Enterprise V3

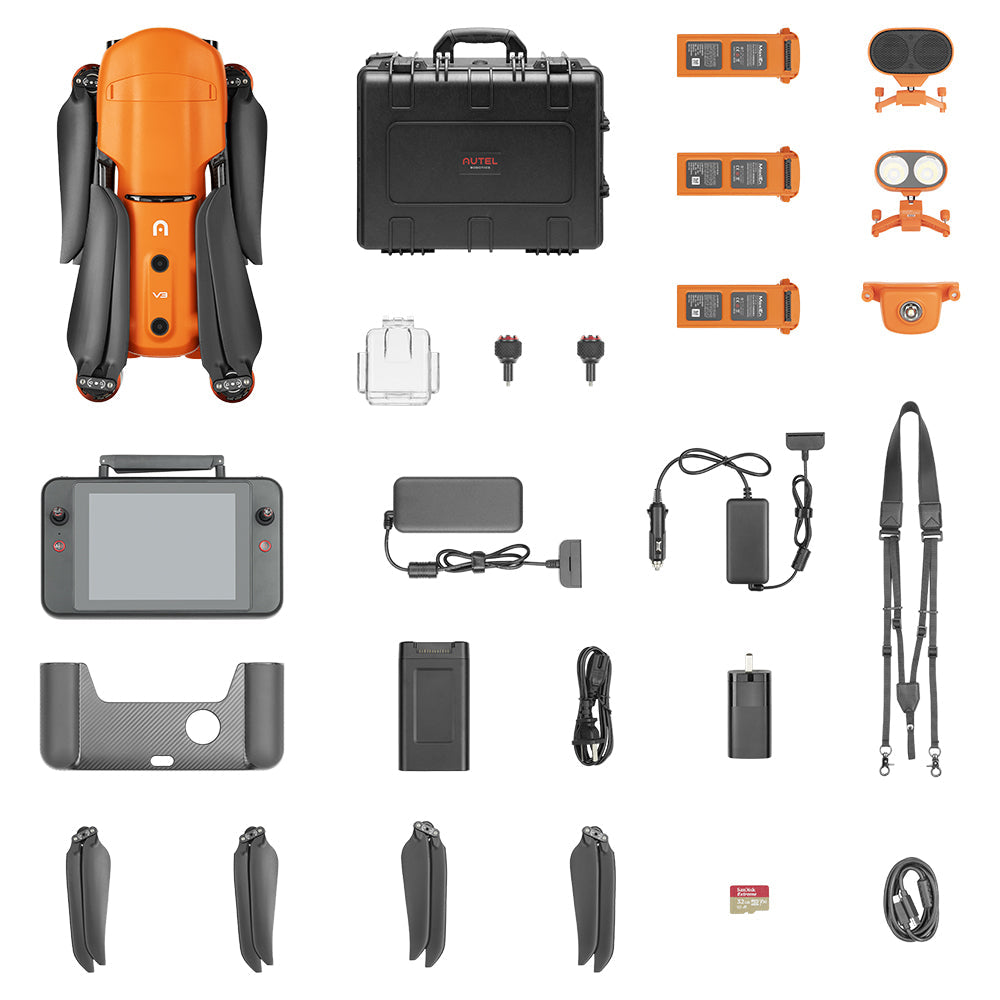

In the Box

EVO II Enterprise V3 integrates a superior imaging system, an upgraded 15km image transmission (SkyLink 2.0) and additional accessories in order to meet different aerial needs including inspection, search and rescue, law enforcement, fire fighting, and more. The foldable design empowers industry users with an efficient and portable aerial work tool.

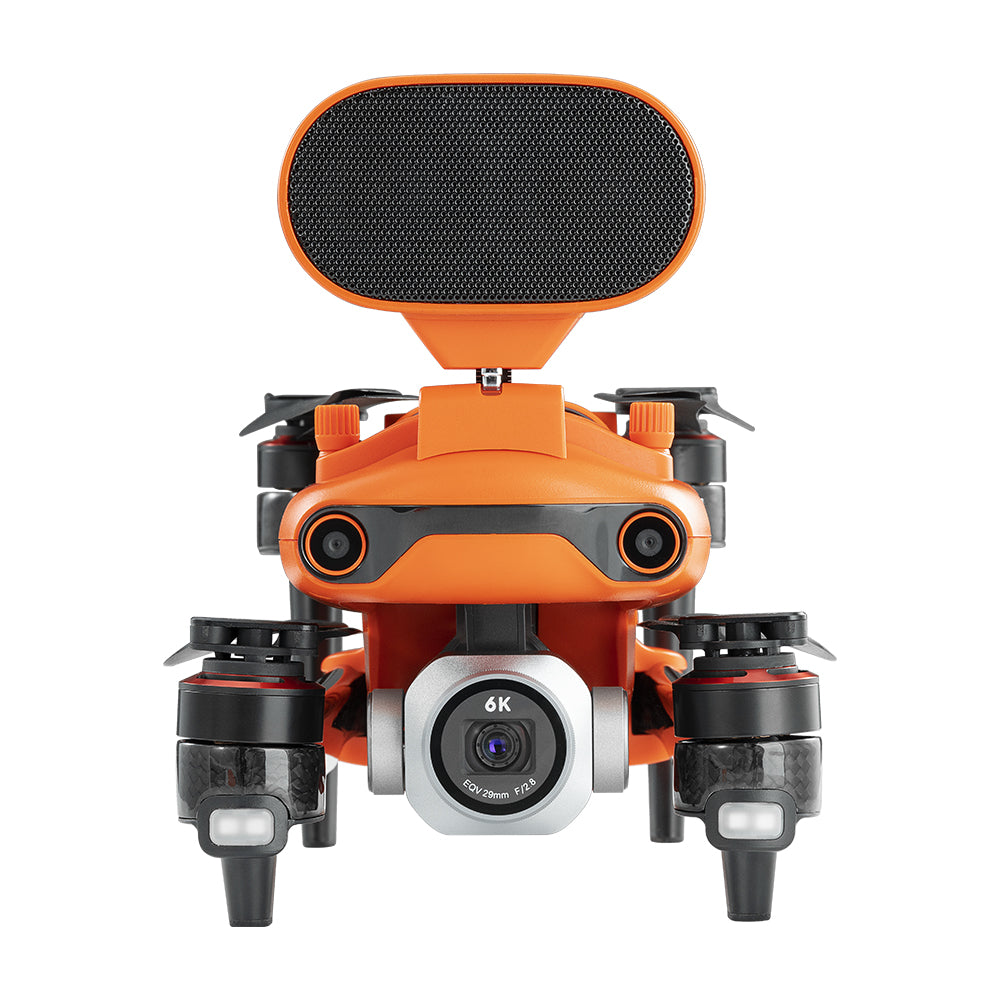

EVO II Pro Enterprise

All New 6K 1" CMOS Camera: See clearer with Sony's new 20-megapixel 1-inch CMOS image sensor, the EVO II Pro Enterprise V3 supports up to 6K video resolution with greater dynamic range, stronger noise suppression, and higher frame rates.

Aperture Range of F2.8 to F11: The lens's adjustable aperture range of f2.8 to f11 and a maximum ISO of 44000 enables the photographer to enhance their control and creative freedom.

Excel in Low Light: EVO II Pro Enterprise V3 brings you Autel's Moonlight Algorithm 2.0 with additional noise reduction processing. Paired with V3's upgraded CMOS, succeed in operations with minimal lighting or in harsh lighting situations at night.

Zoom in for the Details: EVO II Pro Enterprise V3 supports 3x lossless zoom and 16 times digital zoom. Obtain clear intel from farther away without suspicion.

Accident Reconstruction: EVO II Pro Enterprise V3 is excellent for rapid accident reconstruction with built in mission planning, and is compatible with Pix4d, Drone Deploy and Skyebrowse.

Greater Dynamic Range with 4K HDR: 4K HDR offers greater detail in highlights and shadows, providing higher-quality images from the most demanding environments.

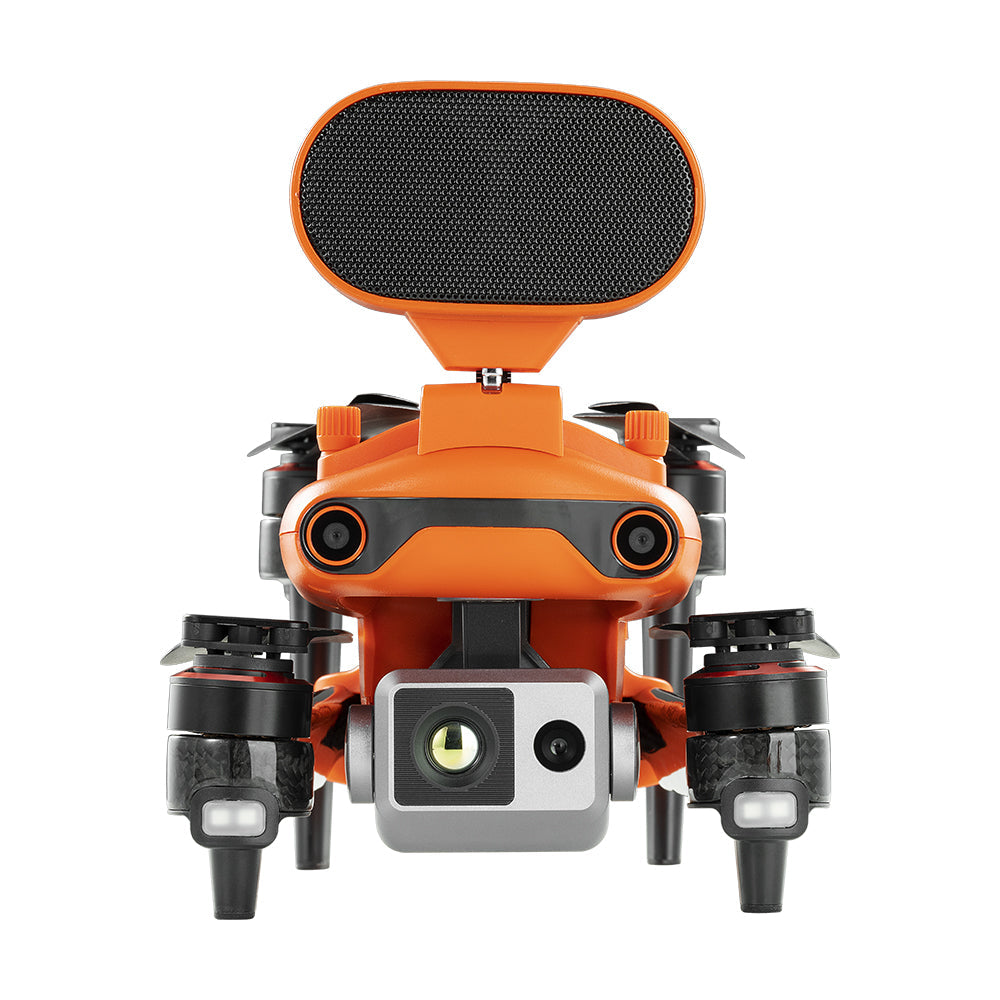

EVO II Dual 640T Enterprise V3

640x512 30Hz Thermal Imaging Sensor: Equipped with a 640*512 high-resolution thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom, it is easy to observe distant targets. The system uses a new image processing algorithm, making thermal imaging details clearer and more discernible than the competition with a similar resolution and hardware.

.8" RYYB CMOS Sensor: Equipped with a .8" RYYB CMOS sensor, featuring moonlight algorithm 2.0 that provides excellent noise suppression in limited lighting conditions, further enhancing its 50 megapixel camera to give users more details for better forensics and analysis. Detect, identify, and classify subjects in low-light situations and proceed with certainty.

Multiple Temperature Measurement Modes

Spot Temperature Measurement: Displays the temperature of a selected object with just a tap of the screen.

Regional Temperature Measurement: Displays the maximum, minimum, and average temperature of a selected area.

Central Temperature Measurement: Displays the temperature in the center area of the screen.

Temperature Alarm: Alerts the user when the temperature of an area reaches a predetermined threshold.

Isotherm: Detects any objects within a specified temperature range.
Image Enhancement: Allows the user to adjust image brightness, contrast, and image details in real-time.

Zoom in From Safety

EVO II Dual 640T Enterprise V3 supports 4x lossless zoom and 16 times digital zoom. Obtain clear intel from farther away without suspicion.

SkyLink 2.0 Video Transmission

The EVO II Enterprise V3 is upgraded with Autel's all new SkyLink 2.0 Video Transmission technology.

15KM: Fly farther with HD video transmission up to 15km.
QHD: Obtain critical details with QHD video within 1km.
2.4G/5.8G/900MHz: Support tri-band communication and can automatically frequency hop for maximum anti-interference capability.

*900MHz working frequency is only applicable for FCC countries.

 Dedicated Enterprise Airframe

42 Minutes of flight time: Large propellers and revised flight algorithms gives the EVO II Enterprise V3 the longest flight time in its category.

Extended Thermal Vents: EVO II Enterprise V3 has additional thermal vents for additional heat dissipation, prolonging battery life.

Longer Carbon Fiber Arms: EVO II Enterprise V3's Carbon Fiber Arms and longer propellers provide additional rigidity and flight stability to the EVO II Enterprise Platform.

Quieter Acoustic Signature: Fly closer without being noticed with EVO II Enterprise V3's new propeller design. The Enterprise is inaudible to the ear at around 190 meters high (623 ft).

Safety in Design

360° Obstacle Avoidance: Equipped with 12 visual optical sensors, which integrates 19 sets of sensors including the main camera, ultrasonic wave, and IMU to build a three-dimensional map of the drone and its surroundings in real-time. The sensors are strategically placed to minimize blindspots on the drone so EVO II Enterprise V3 can automatically stop near obstacles.

*Please refer to the manual for details on obstacle avoidance and its limitations, which may or may not work in limited lighting environments, under direct strong sunlight, or across thin tree branches or wires.

ADS-B Receiver: Detects the presence of any manned aircraft nearby emitting an ADS-B signal, giving the operator enough time to take evasive measures to avoid mid-air collisions.

Mission Versatility

With an expanded selection of accessories at its disposal, the EVO II Enterprise V3 can evolve from a simple imaging tool to a multifunctional flight platform that can adapt to different scenarios.

Strobe: Indicate the location of the aircraft at night to avoid air traffic accidents. Compliant with FAA regulations for night flying, visible over 3 Miles away.

Loudspeaker: Enables effective on-site communication through long-distance live broadcasts and prerecorded audio loops.

Spotlight: Beams a powerful, long-distance aerial light when searching or shooting at night.

RTK Module（Optional): Provides centimeter-accurate positioning data for mapping and reduces electromagnetic interference for flying near critical structures.

Autel Smart Controller V3: Smart Controller V3's 7.9-inch, 2000nit high-brightness screen is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 15km away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.

7.9-inch HD Touch Screen, 2000nit Maximum Brightness, 4.5-Hour Long Battery Life, -20℃ to 40℃ Operating Temperature, IP43 Resistance

Broadcast with Live Deck 2: Broadcast live mission intel to other personnel in the operation for enhanced situational awareness and critical decision-making. The EVO II Enterprise V3 is compatible with Live Deck 2, which offer multiport streaming to monitors and Wifi support for multiple smartphones.

1080P/60FPS Video Stream: Three Auto-Switch Bands; 12km Transmission Range; 5-hr Battery Life; IP43 Resistance.

SPECIFICATIONS
