DJI ENTERPRISE LIDAR & MAPPING — CANADA

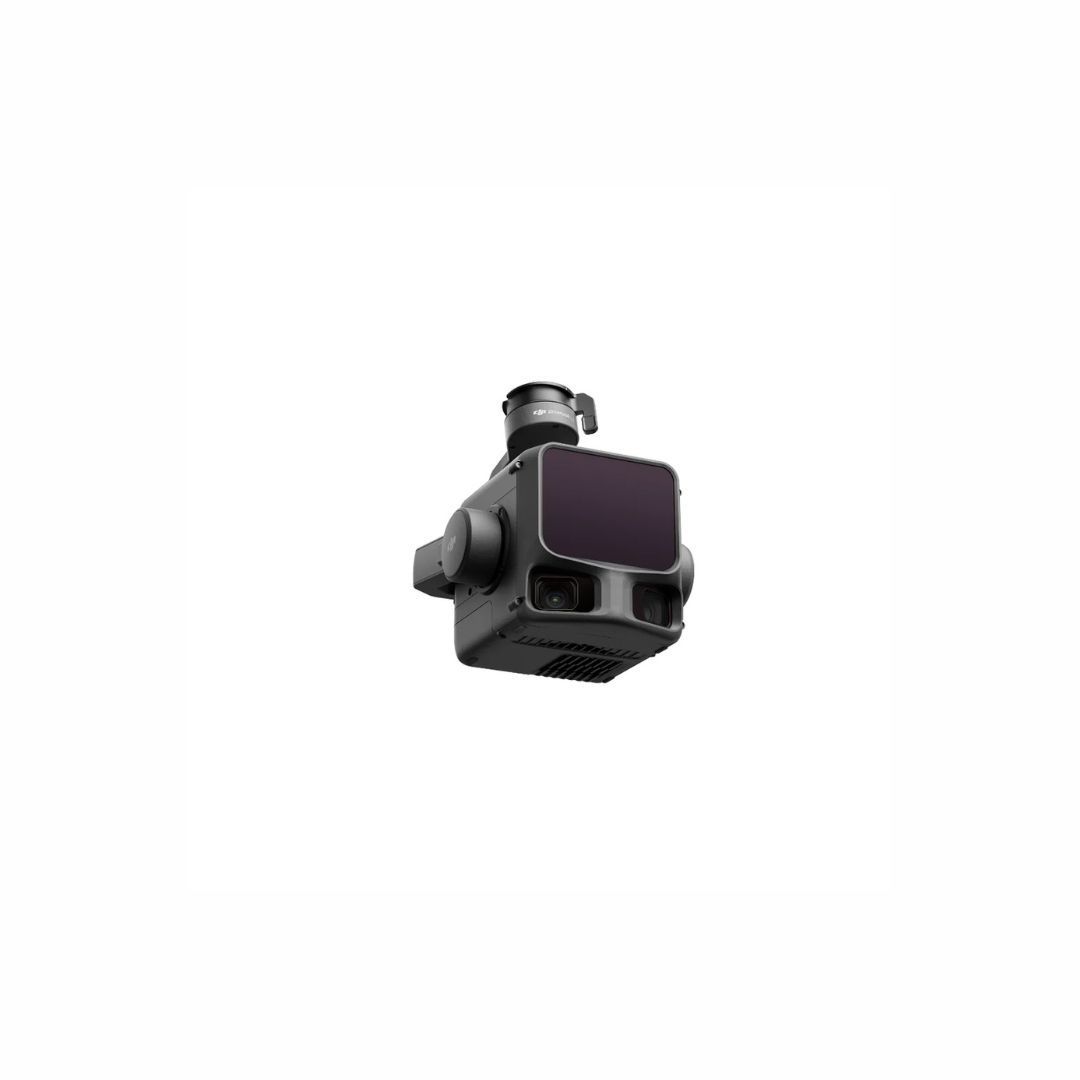

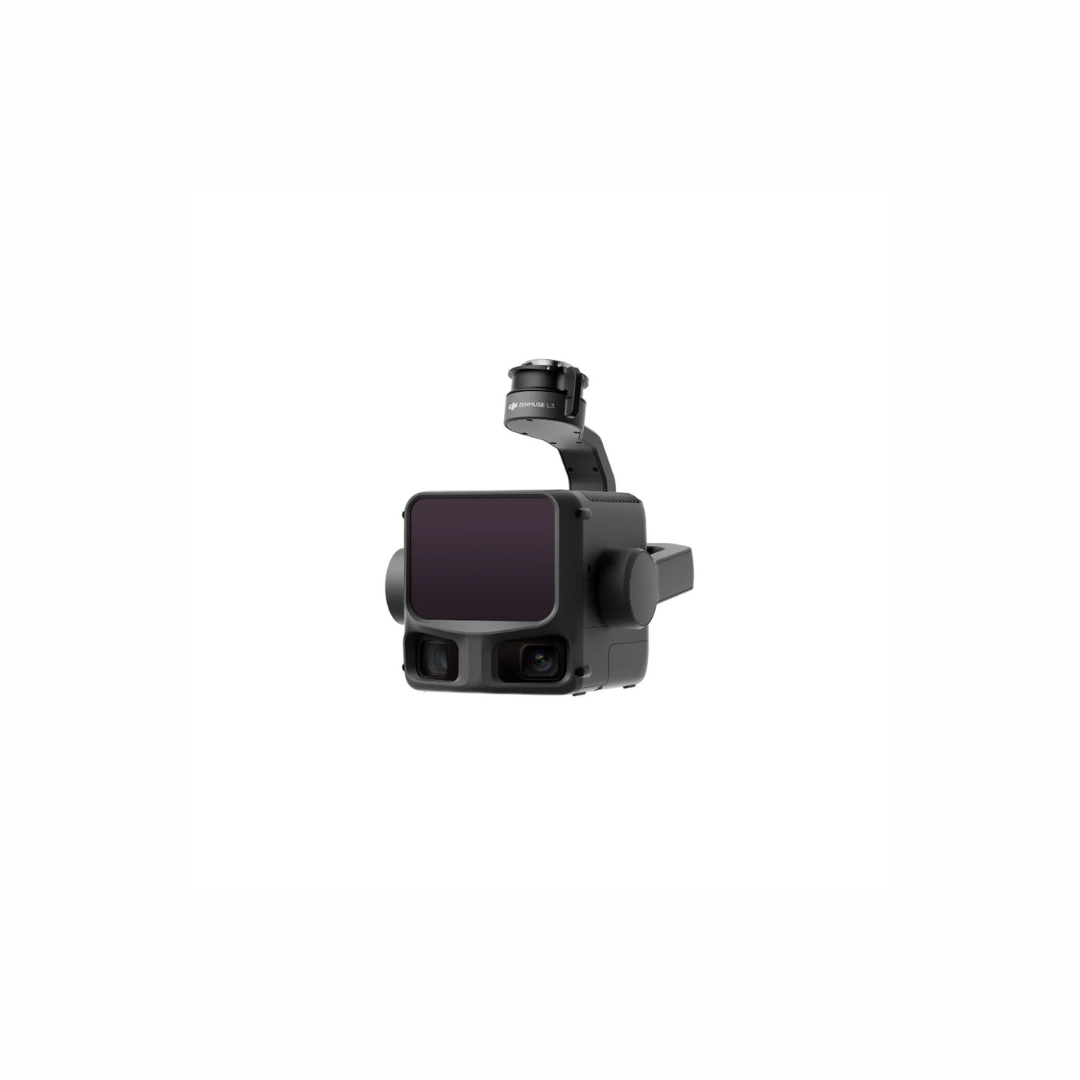

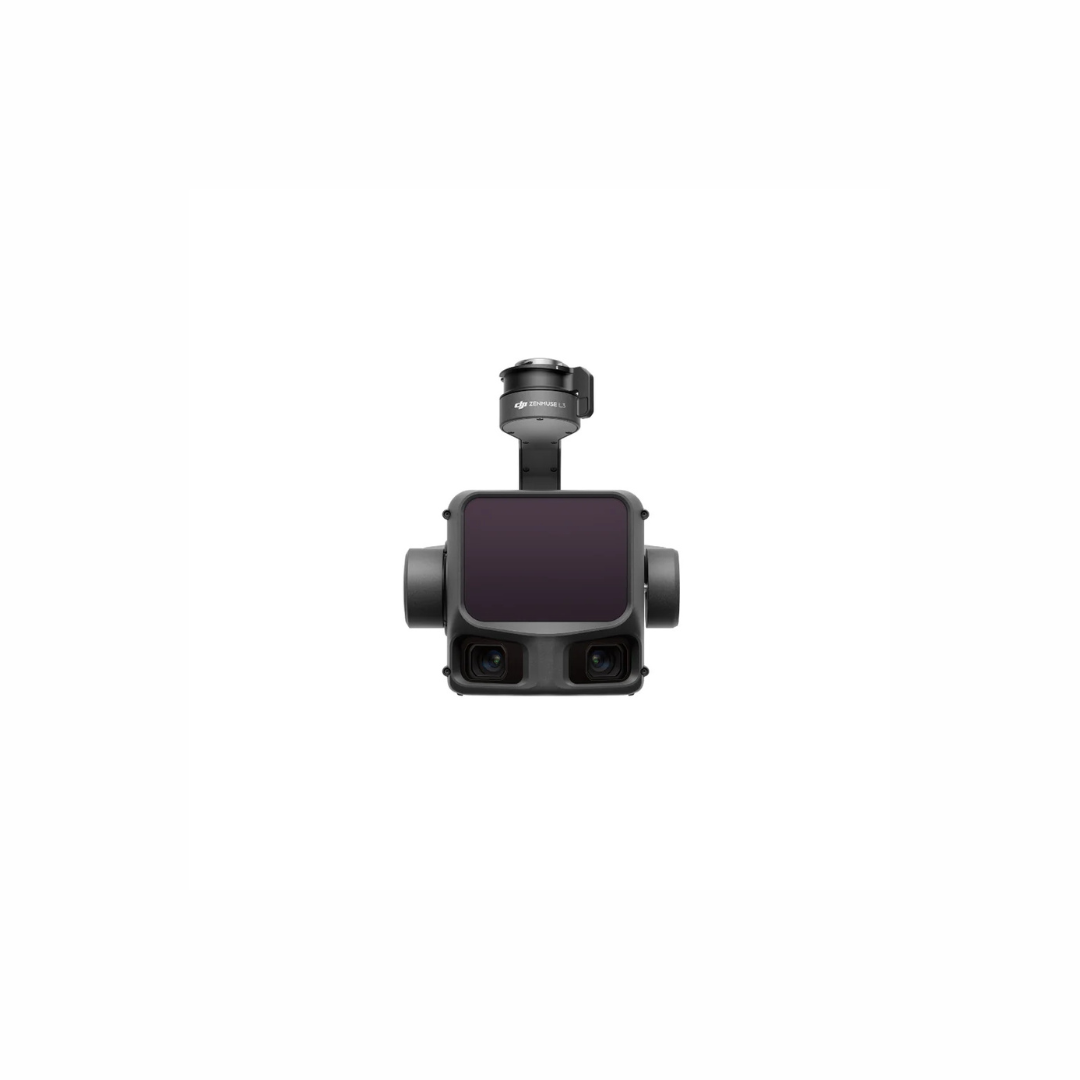

The DJI Zenmuse L3 is DJI’s most advanced aerial LiDAR and photogrammetry payload, engineered for professionals who demand centimetre-level accuracy at scale. Combining a 1535nm long-range LiDAR sensor, dual 100MP RGB mapping cameras, and a high-precision IMU in a single integrated gimbal, the L3 delivers survey-grade results across topographic mapping, infrastructure inspection, forestry analysis, and large-scale industrial applications. Available exclusively through Unmanned Canada, Canada’s authorized DJI Enterprise dealer.
500 m Max Detection Range | <3 cm Vertical Accuracy | 100 MP Dual RGB Cameras | 100 km² Daily Coverage
The Zenmuse L3 sets a new benchmark for integrated aerial sensing — combining LiDAR and photogrammetry in a single payload that eliminates the need for multi-platform workflows. Whether you’re delivering 1:500-scale topographic maps or conducting vegetation penetration analysis, the L3 gives your team the accuracy, coverage, and reliability to complete missions faster and with greater confidence.
PRECISION
The L3 achieves vertical accuracy better than 3 cm at 120 m altitude, better than 5 cm at 300 m, and better than 10 cm at 500 m. Real-time position synchronization enables GCP-free operation, while the upgraded POS system delivers heading accuracy of 0.02° and pitch accuracy of 0.01° (post-processed, 1σ). Ranging repeatability of 5 mm at 150 m ensures consistent, reliable survey results across every mission.
PENETRATION
With a smaller laser spot and higher single-pulse energy, the L3 penetrates dense vegetation and complex surfaces more effectively than its predecessor. Point cloud thickness is half that of the Zenmuse L2, capturing more ground points with greater completeness — critical for terrain modelling, forestry inventory, and surface reconstruction in challenging environments.
IMAGING
Two integrated 100MP cameras deliver a ground sample distance (GSD) of 3 cm at 300 m flight altitude. Combined with LiDAR data in a single DJI Terra workflow, the L3 produces photogrammetric outputs with the same precision as dedicated mapping cameras — without the added payload complexity.
WORKFLOW
The Zenmuse L3 integrates natively with DJI Terra for LiDAR processing, PPK correction, and photogrammetry — supporting D-RTK 3 and standard base station data. From flight planning to deliverable, the entire workflow runs within DJI’s unified platform, reducing processing time and eliminating third-party software dependencies for standard mapping projects.
FORESTRY & MAPPING
The L3’s superior vegetation penetration and 100 km² daily coverage capacity make it the payload of choice for provincial and federal forestry programs. Capture accurate DTMs beneath dense canopy, classify ground returns with high confidence, and deliver forestry inventory data that meets regulatory standards — all in fewer flight days.
INFRASTRUCTURE INSPECTION
For powerline, pipeline, and transportation corridor inspections, the L3 combines LiDAR clearance measurement with high-resolution RGB imagery in a single pass. Detect encroachments, measure sag, and generate as-built models with the accuracy required for engineering-grade deliverables — without deploying multiple sensor platforms.
MINING & CONSTRUCTION
Track stockpile volumes, monitor cut-and-fill progress, and generate accurate site models throughout the construction lifecycle. The L3’s GCP-free accuracy and DJI Terra integration streamline the survey-to-report workflow, reducing turnaround time from days to hours on active mine sites and construction projects.
| LiDAR Sensor Wavelength | 1535 nm |
| Max Detection Range | 500 m (10% reflectivity), 1000 m (50% reflectivity) |
| Vertical Accuracy | <3 cm @ 120 m | <5 cm @ 300 m | <10 cm @ 500 m |
| Ranging Repeatability | 5 mm @ 150 m (1σ) |
| Heading Accuracy (Post-Processed) | 0.02° (1σ) |
| Pitch/Roll Accuracy (Post-Processed) | 0.01° (1σ) |
| RGB Camera | Dual 100MP mapping cameras |
| GSD @ 300 m | 3 cm |
| Daily Coverage Capacity | Up to 100 km² (optimal conditions) |
| Compatible Platforms | DJI Matrice 350 RTK, Matrice 300 RTK, Matrice 400 |
| Data Processing Software | DJI Terra (PPK, LiDAR, Photogrammetry) |
| Operating Temperature | -20°C to 50°C |
Values above are based on standard operational parameters. For complete calculation methods, test conditions, and official parameter sheets, review the DJI Zenmuse L3 Technical Specifications Sheet or download the full guide on the DJI Zenmuse L3 Official Downloads Page. You can also Contact Unmanned Canada for a verified enterprise datasheet.
Access official manufacturer documentation, software, and quick-start manuals directly from DJI Enterprise:
PLATFORM
The Matrice 400 is the recommended primary platform for the Zenmuse L3, offering extended flight time, dual-payload capability, and full RTK integration for maximum mission efficiency. View the DJI Matrice 400.
PLATFORM
The Matrice 350 RTK provides a proven, reliable platform for L3 deployments requiring compatibility with existing fleet infrastructure. Supports full RTK and DJI Terra integration. View the DJI Matrice 350 RTK.
PROCESSING
DJI Terra is the native processing platform for Zenmuse L3 data — supporting LiDAR point cloud generation, PPK correction, RGB photogrammetry, and deliverable export in standard GIS formats. A DJI Terra Pro or Enterprise licence is required for LiDAR processing workflows.
POSITIONING
For missions requiring the highest positional accuracy without network RTK coverage, the D-RTK 3 provides a reliable base station reference for PPK post-processing. Contact Unmanned Canada for D-RTK 3 availability.
STANDALONE PACKAGE
Note: DJI Terra Pro/Enterprise licence for LiDAR processing is not included and requires a separate subscription. Contact Unmanned Canada for licensing options.
FULL BUNDLE
Note: DJI Terra Pro/Enterprise licence is not included. Software subscriptions are managed separately through DJI’s licensing portal.
SHIPPING & LOGISTICS
The Zenmuse L3 ships from our Ontario warehouse via freight courier. Estimated delivery: 2–5 business days for ON/QC; 5–10 business days for Western and Atlantic Canada. Expedited shipping available upon request. Contact Unmanned Canada for freight quotes on multi-unit orders.
TRANSPORT CANADA
The Zenmuse L3 is a payload system and does not require independent Transport Canada registration. However, the aircraft platform (e.g., Matrice 400 or Matrice 350 RTK) must be registered under CARs Part IX. Operators conducting commercial mapping missions must hold a valid Advanced RPAS Pilot Certificate. Contact Unmanned Canada for compliance guidance.
WARRANTY & PROTECTION
The Zenmuse L3 is eligible for DJI Care Enterprise Basic and Plus coverage, providing priority repair, replacement units, and dedicated enterprise support. Care Enterprise must be activated within 30 days of purchase. Contact Unmanned Canada to add Care Enterprise to your order.
LEAD TIMES
The Zenmuse L3 is available through Unmanned Canada subject to DJI Enterprise allocation. Current stock levels are shown above. For large-volume orders or project-specific procurement timelines, contact our enterprise team to confirm availability and lead times.
The Zenmuse L3 is compatible with the DJI Matrice 400, Matrice 350 RTK, and Matrice 300 RTK. It is not compatible with consumer or prosumer DJI platforms.
No. DJI Terra Pro or Enterprise licence is required for LiDAR point cloud processing and is sold separately. Basic DJI Terra functions are available free of charge but do not include LiDAR workflows. Contact Unmanned Canada for Terra licensing options.
Yes. When paired with an RTK-enabled platform (Matrice 400 or Matrice 350 RTK) or using PPK post-processing with D-RTK 3, the L3 achieves survey-grade accuracy without GCPs in most mapping scenarios.
The L3 offers a significantly extended detection range (up to 500 m vs. 450 m), dual 100MP RGB cameras (vs. single 20MP on L2), half the point cloud thickness of the L2, and improved IMU accuracy. It is designed for projects requiring higher resolution outputs and larger daily coverage areas.
All official documentation — including the User Manual, Quick Start Guide, and Safety Guidelines — can be accessed on the DJI Zenmuse L3 Downloads Center.
Point cloud alignment, colorization, and PPK post-processing require DJI Terra (Version 5.1.0 or later). Software setup instructions and local RINEX/DAT base station compatibility details are outlined in the DJI Zenmuse L3 Official FAQ.
Detailed range definitions (at 10% and 80% reflectivity across 100 kHz to 2000 kHz pulse rates) and Class 1 laser safety ratings are published in the DJI Zenmuse L3 Technical Specifications Sheet. For additional operational setup help, visit the DJI Canada Zenmuse L3 Support Hub.
Yes. DJI Terra supports full PPK processing for both LiDAR and RG B data, compatible with D-RTK 3 and standard CORS/base station data. This enables centimetre-level accuracy in areas without network RTK coverage.
The Zenmuse L3 includes a standard DJI manufacturer warranty. DJI Care Enterprise Basic or Plus can be added for comprehensive coverage including replacement units and priority repair. Contact Unmanned Canada for details.
Rental availability varies. Contact our enterprise team to inquire about short-term rental options for project-specific deployments.
For volume pricing, project procurement, or bundled platform and payload packages, contact Unmanned Canada directly. Our enterprise team will provide a tailored quote and confirm lead times.
