DJI Mic (1 TX + 1 RX)
DJI Mic (1 TX + 1 RX)
DJI Mic (1 TX + 1 RX)
Street Release Date: JANUARY 9TH
Elevated Audio on the go!
Introducing DJI Mic (1 TX + 1 RX)! Choose from DJI Mic (1 TX + 1 RX) or DJI Mic (2 TX + 1 RX + Charging Case) to suit your audio creative needs.
Dual-Channel Recording |
250m Wireless Transmission |
Up to 14 Hours of Onboard Memory |
Portable and Compact |
Wide Compatibility |
Up to 15 Hours of Battery Life |

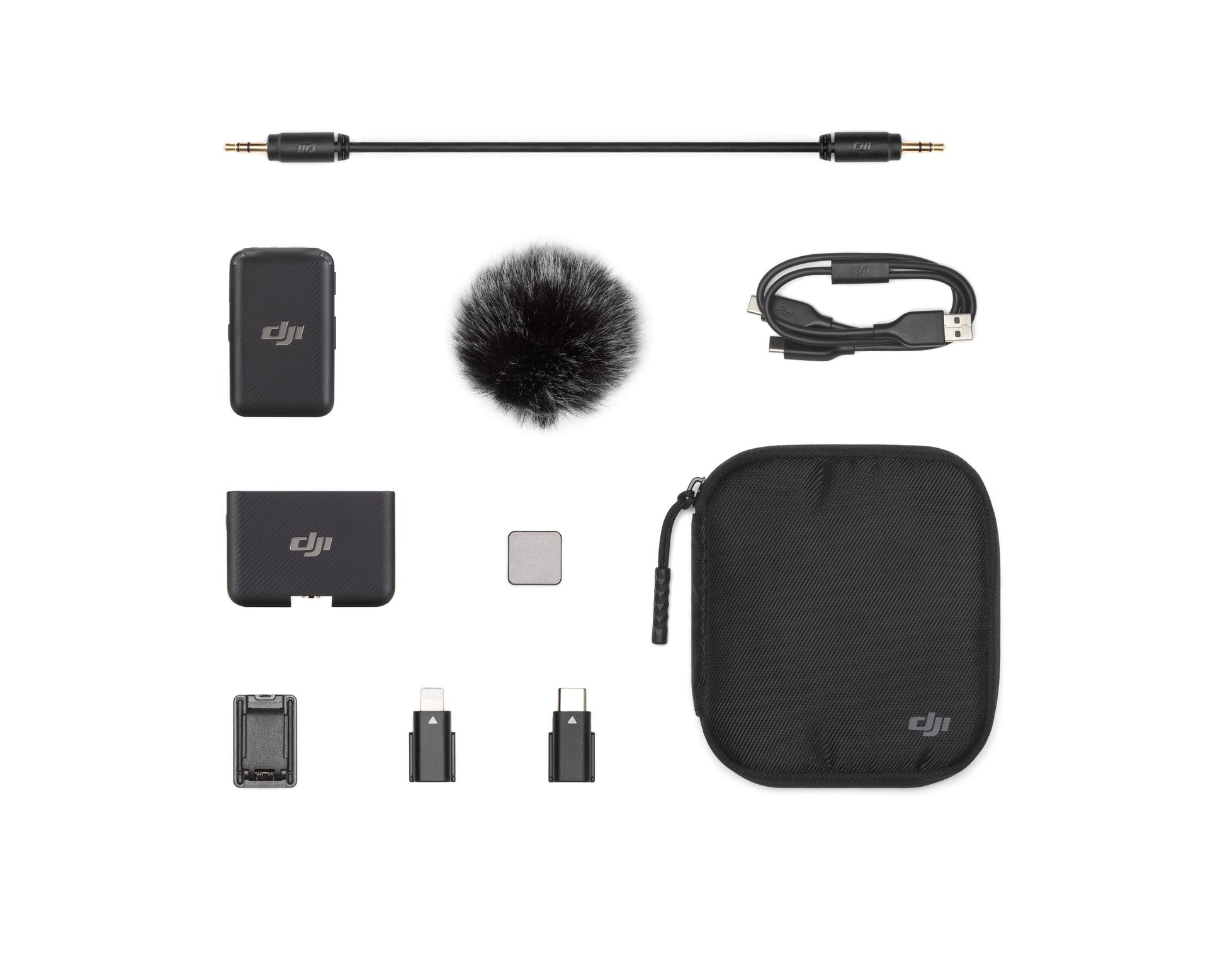

IN THE BOX
DJI Mic Receiver x1 |
DJI Mic Transmitter x1 |
DJI Mic Camera Audio Cable (3.5mm TRS) x1 |
DJI Mic Mobile Phone Adapter (Type-C) x1 |
DJI Mic Mobile Phone Adapter (Lightning) x1 |
DJI Mic Windscreen x1 |
DJI Mic Clip Magnet x1 |
DJI Mic Hot Shoe Adapter x1 |

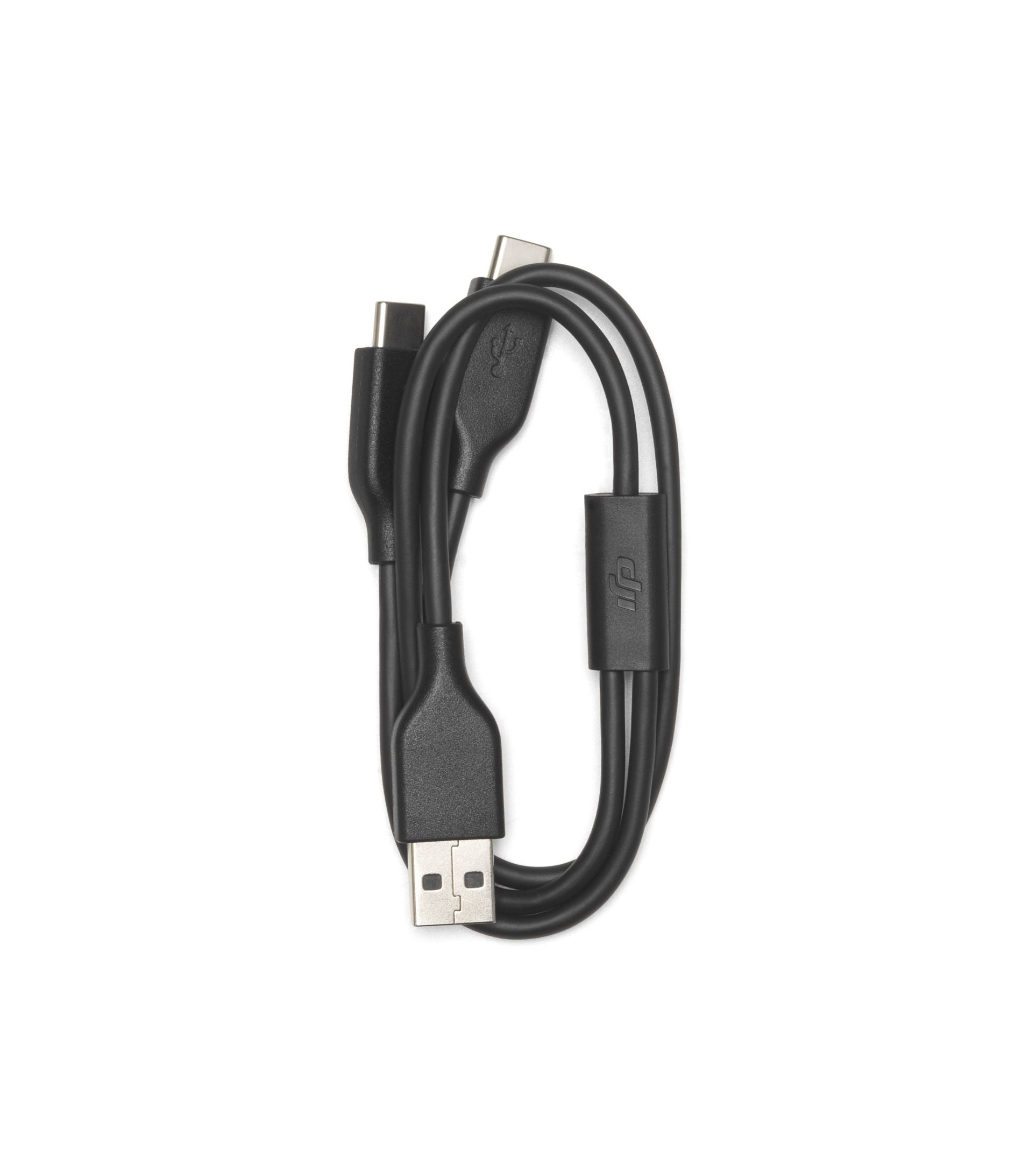

DJI Mic Splitter Charging Cable x1 |

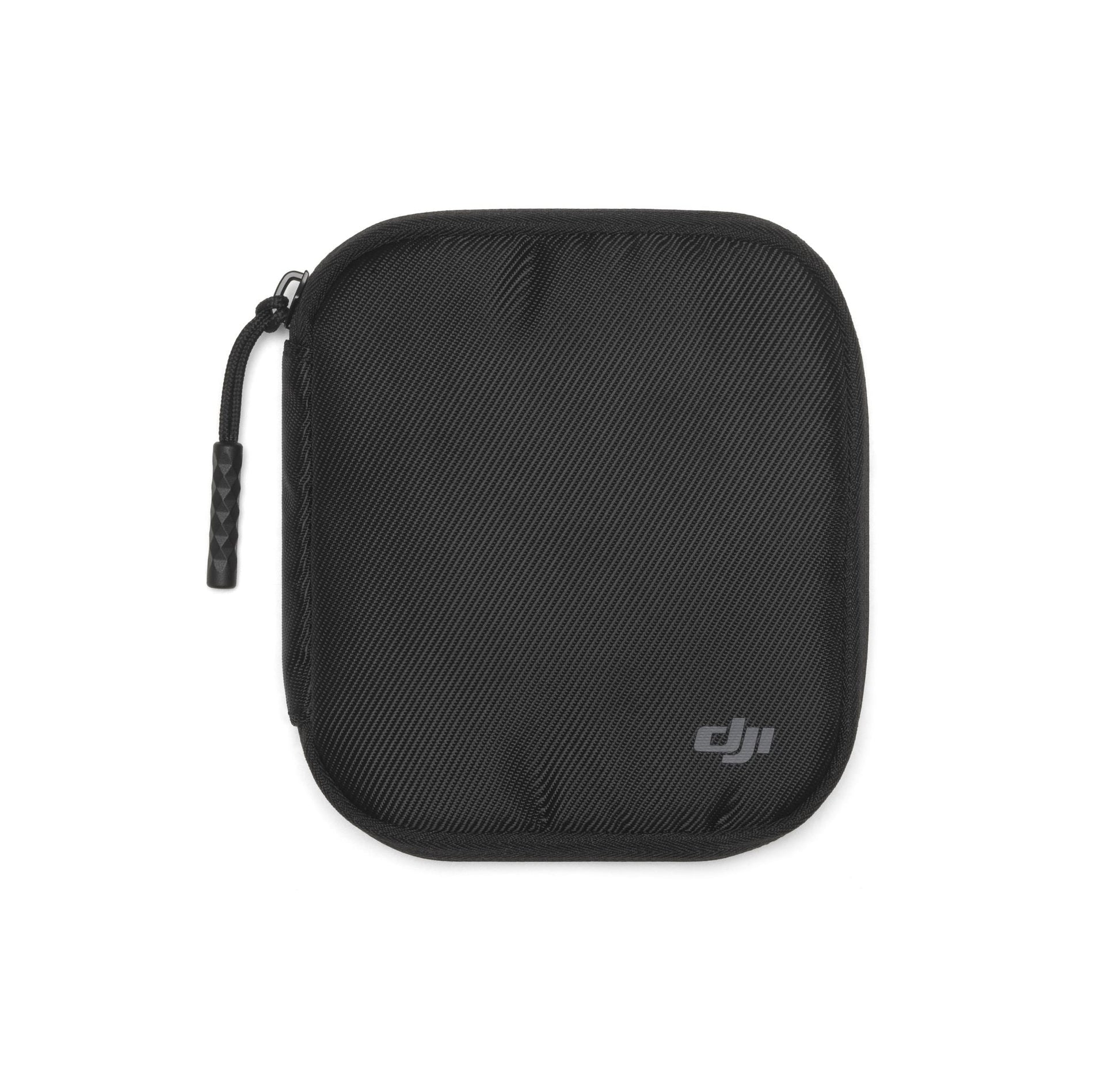

DJI Mic Storage Bag x1 |
Documents x1 |
Overview
With DJI Mic, you can now easily record audio that matches the quality of your videos. It's ideal for creators looking to gain an edge and elevate their content to the next level. It delivers exceptional sound quality and dual-channel recording at distances of up to 250 m. Switch on, connect, and record crystal-clear audio on the go.
- Dual-Channel Recording
- 250m Wireless Transmission
- Up to 14 Hours of Onboard Memory
- Portable and Compact
- Wide Compatibility
- Up to 15 Hours of Battery Life
Dual-Channel Recording

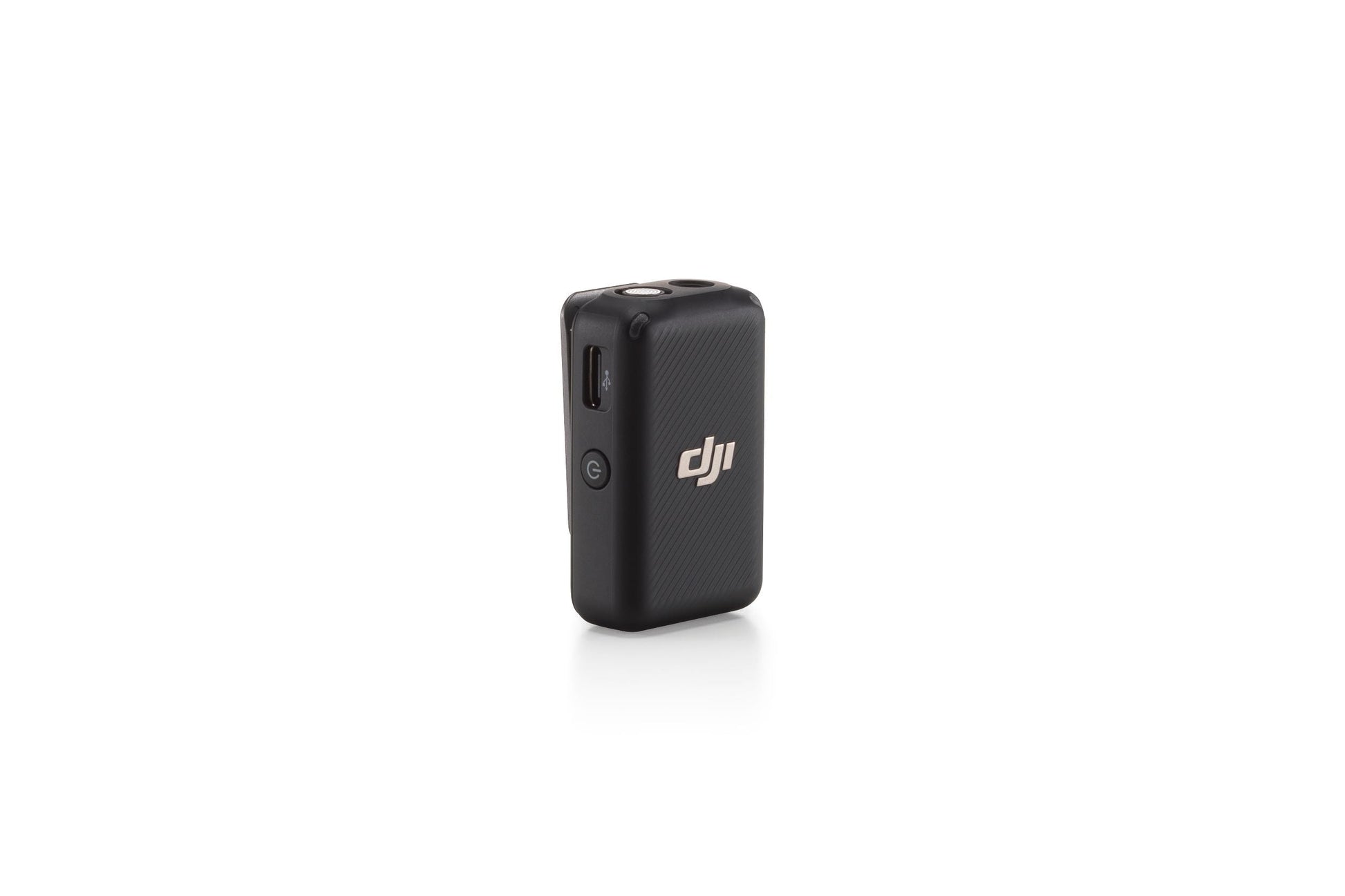

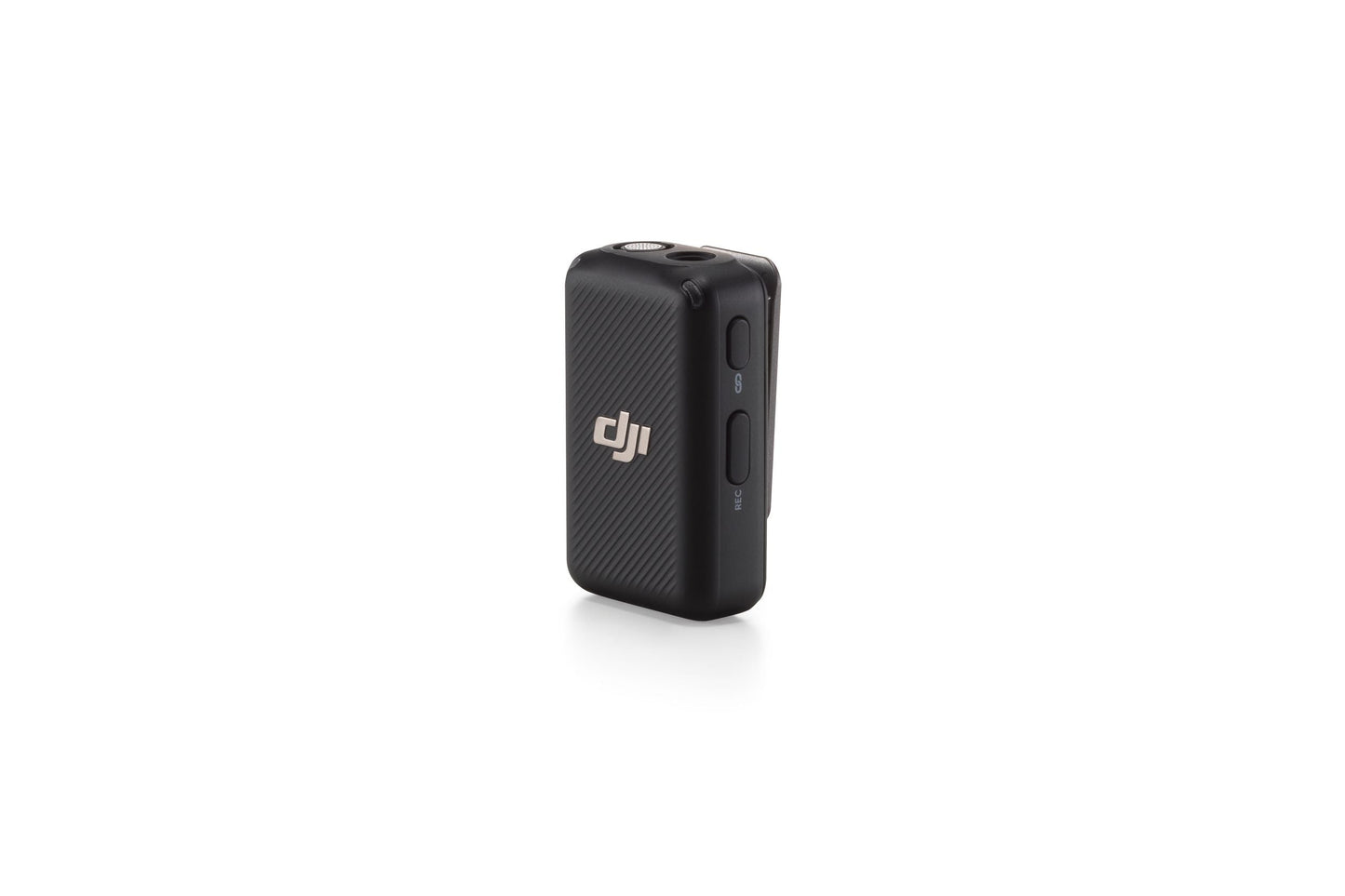

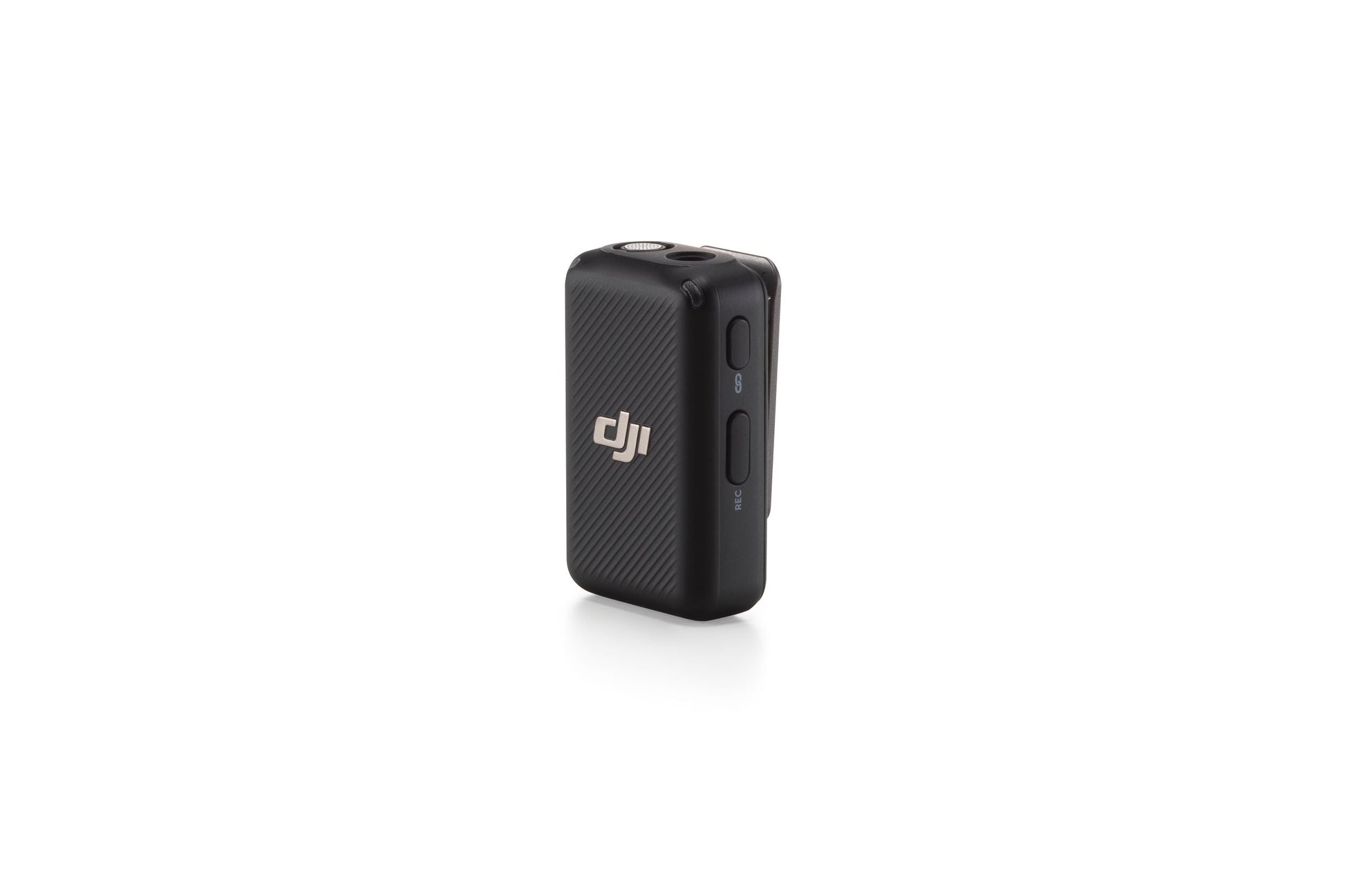

DJI Mic (1 TX + 1 RX) comes with one transmitter, with a built-in microphone. The transmitter supports omnidirectional audio, making them ideal for multi-person interviews and small studio operations.
High-Quality Audio
DJI Mic allows you to record high-fidelity, professional audio by accurately reproducing tone across a wider frequency range. Recordings can be made separately via each channel, or the two channels can be combined for flexibility in post-production.
Built-in Touchscreen and Onboard Memory
The receiver's touchscreen display gives you easy access to channel selection, input/output settings, and other essential operations. Both transmitters come with 14 hours of built-in storage to prevent audio frame drop, loss, and other issues.
Wireless Transmission
Enjoy clear and reliable audio, even in complex scenarios. The transmitters and receiver communicate via a powerful wireless transmission that keeps audio stable while reducing sound delay, even at long distances.
250m Transmission Range
Using DJI's latest encryption technology, DJI Mic is capable of recording crisp audio at distances of up to 250 meters.
Wireless Convenience
The entire DJI Mic system is wirelessly connected via a stable 2.4GHz frequency band, which allows you to move with complete freedom as you record your adventure.
Powerful Anti-Interference
The optimized wireless transmission system ensures a stable stream of audio, even in areas such as train stations, shopping malls, and offices.
Wearable and Portable
Conveniently attach a transmitter to whatever you're wearing via the integrated back clip or by using the clip magnets. Weighing approximately 30 grams or just 1 ounce, wearing the transmitter is comfortable and seamless.
Clip On and Record
Each transmitter has a convenient back-clip that can be easily attached to clothes and other objects.
More Ways to Connect
When the clothes you're wearing aren't suitable for the back clip, the transmitters can also be attached via the clip magnets.
Easy to Mount
With the cold shoe adapter attach the receiver to your DSLR camera, mirrorless camera, or smartphone bracket and capture flawless footage to match the audio.
Vastly Compatible
Different devices mean different input adapters, and DJI Mic covers them all. The receiver has USB-C, Lightning, and 3.5mm TRS ports, making it compatible with mainstream smartphones, cameras, and laptops.
Ultra-Long Battery Life
Looking for a system that can keep up with your content needs? Get a full day of audio recording with DJI Mic. Enjoy 5.5 hours of battery life from the transmitters, 5 hours from the receiver, and up to 15 hours with the charging case.
Rich Functionality
1. Safety Track:
A secondary audio track is recorded as a backup with a volume of -6 dB. This helps to safeguard your audio should the loss of sound be caused by problems such as distortion or clipping.
2. Multi-level Gain Control:
Adjust input and output sensitivity between -12dB ~ 12dB and find the perfect setting for your surrounding.
3. Microphone Windscreen:
Effectively suppresses wind and noisy environments while still recording clear sound.
Specifications
DJI Mic Transmitters
-
Model
-
AST01
-
Dimensions
-
47.32×30.43×20.01 mm
-
Weight
-
30 g
-
Wireless Mode
-
GFSK 1 Mbps and 2 Mbps
-
Equivalent Isotropic Radiated Power (EIRP)
-
<20 dBm
-
Operating Frequency
-
2400-2483.5 MHz
-
Battery Type
-
LiPo 1S
-
Battery Capacity
-
320 mAh
-
Battery Energy
-
1.23 Wh
-
Battery Voltage
-
3.85 V
-
Charging Temperature
-
5 to 45° C (41° to 113° F)
-
Operating Temperature
-
-10° to 45° C (14° to 113° F)
-
Charging Time
-
70 mins
-
Operating Time
-
5.5 hours

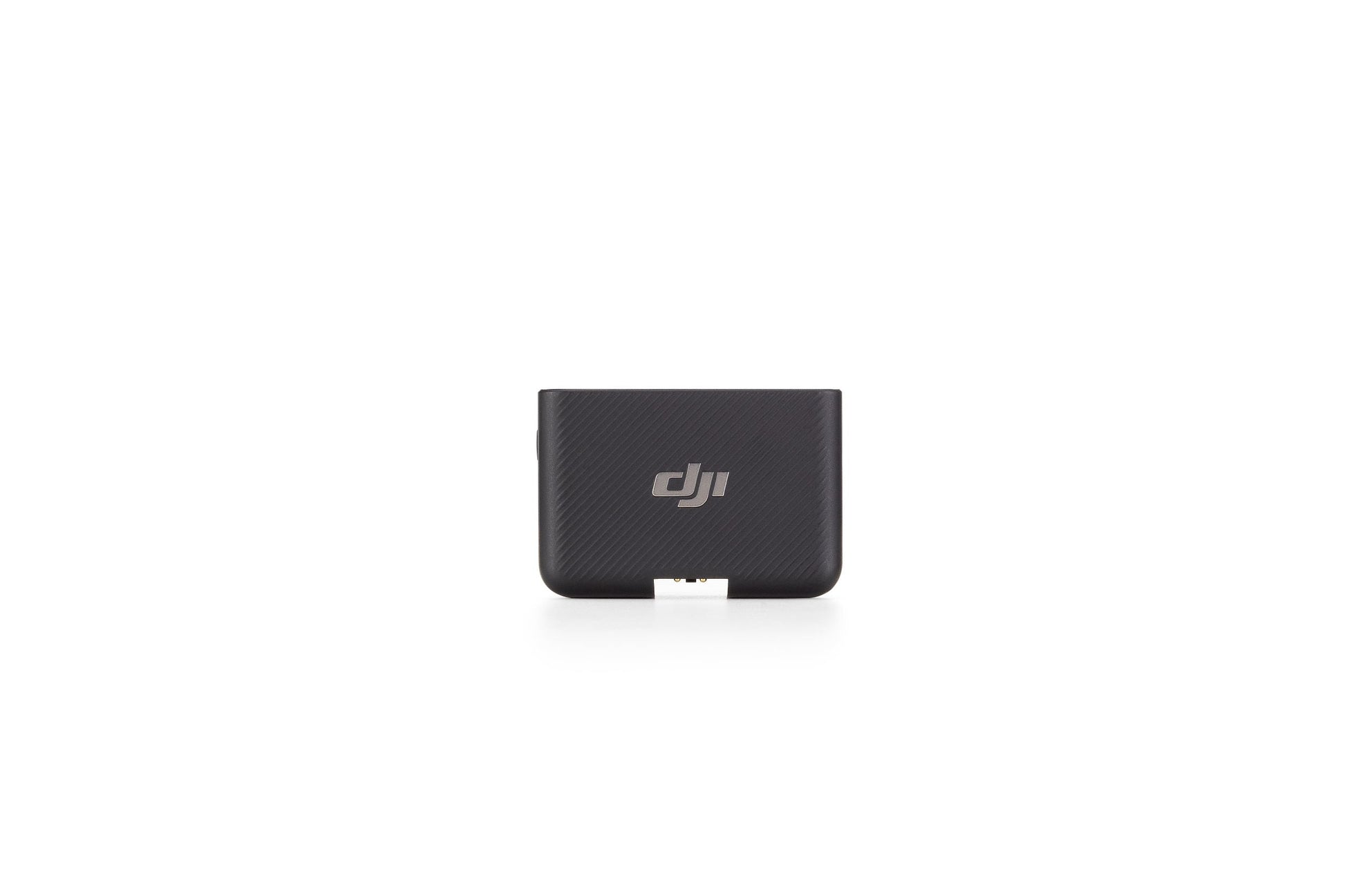

DJI Mic Receiver
-
Model
-
ASR01
-
Dimensions
-
47.44×32.21×17.35 mm
-
Weight
-
24.9 g
-
Wireless Mode
-
GFSK 1 Mbps and 2 Mbps
-
Equivalent Isotropic Radiated Power (EIRP)
-
<20 dBm
-
Operating Frequency
-
2400-2483.5 MHz
-
Battery Type
-
LiPo 1S
-
Battery Capacity
-
320 mAh
-
Battery Energy
-
1.23 Wh
-
Battery Voltage
-
3.85 V
-
Charging Temperature
-
5 to 45° C (41° to 113° F)
-
Operating Temperature
-
-10° to 45° C (14° to 113° F)
-
Charging Time
-
70 mins
-
Operating Time
-
5 hours
Charging Case
-
Model
-
ASB01
-
Dimensions
-
103.06×61.87×41.50 mm
-
Weight
-
162.2 g
-
Battery Type
-
LiPo 1S
-
Battery Capacity
-
2600 mAh
-
Battery Energy
-
10 Wh
-
Battery Voltage
-
3.87 V
-
Charging Temperature
-
5 to 45° C (41° to 113° F)
-
Operating Temperature
-
5 to 45° C (41° to 113° F)
-
Charging Time
-
2 hours and 40 mins
-
Operating Time
-
Fully charge three devices simultaneously 1.8 times
General
-
Microphone Directions
-
All Directions
-
Frequency Response
-
Low Cut Off: 50 Hz - 20 kHz
Low Cut On: 150 Hz - 20 kHz
-
Max Sound Pressure Level (SPL)
-
114 dB SPL
-
Max Input Level (3.5 mm)
-
-17 dBV (THD < 0.1%)
-
Equivalent Noise
-
23 dBA
-
Monitor Interface Output Power
-
Max Output 22mW@1kHz, 32Ω
-
Max Transmission Distance
-
250 m (FCC)
160 m (CE)
Measured in an unobstructed outdoor environment free of interference.
