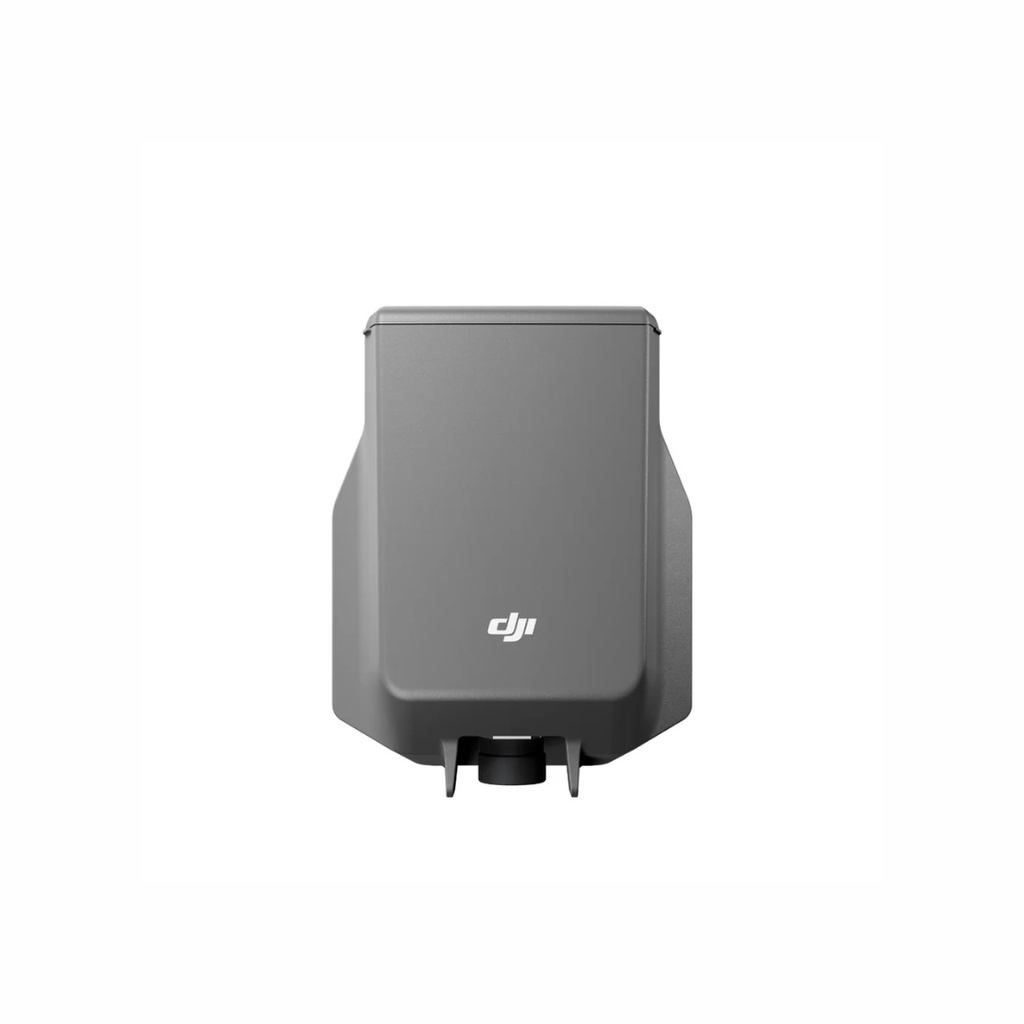

An independent, redundant recovery system designed to support safer Matrice 400 operations. The AP100 combines automatic and manual deployment, sub-600 ms response and a stabilized descent speed below 5 m/s.
Key Specifications
European Compliance Pathways
The certification route depends on whether the parachute is fitted to an existing aircraft or supplied as part of a factory-certified C6 configuration.
C5 / UK5: Supports STS-01 visual-line-of-sight operations over a controlled ground area in a populated environment, subject to applicable requirements.
C6 / UK6: Supports the factory-certified route for STS-02 BVLOS operations with airspace observers over a controlled ground area, subject to applicable requirements.
Independent and Redundant
From power-on through flight, the AP100 monitors its gas generator and communication links. Anomalies trigger real-time alerts through the Health Management System in DJI Pilot 2.
Its independent flight controller and onboard sensors cross-check parachute and aircraft data to reduce the risk of an unintended deployment caused by a false positive.
Built-in dual capacitors keep attitude monitoring and automatic deployment available without relying on the aircraft's main battery or an active E-Port connection.
The independent Flight Termination System cuts motor power and stops the rotors before ejection, helping prevent the parachute canopy and lines from becoming entangled.
After deployment, loud alarms and high-intensity flashing lights continue for approximately one hour to warn people nearby and help operators locate the aircraft.
The mounting position avoids interference with battery changes or payload configurations. The Matrice 400 fits in its standard carrying case with the AP100 attached.
Deployment Methods
Automatic, pilot-controlled and supported remote deployment pathways provide operational flexibility.
Operational Planning
At approximately 935 g, the AP100 preserves the Matrice 400's maximum supported takeoff weight of 15.8 kg, with an approximate six-minute flight-time impact under DJI's test conditions.
The system shares the Matrice 400's IP55 rating and operates from −20°C to 50°C (−4°F to 122°F). Protection can decrease over time through normal wear.
When the AP100 is installed, the Matrice 400 automatically disables its downward and backward mmWave radars. Small-obstacle sensing in those directions is therefore limited.
The AP100 must be completely replaced after deployment. If it remains undeployed and continues to pass daily self-checks, DJI recommends retiring the system three years after activation.
Use Cases
Pair the M400 with the AP100, H30T, spotlight and speaker for traffic guidance, event safety notices and situational awareness in controlled urban operations.
Add a dedicated recovery layer when operating an M400 with compatible cleaning or inspection equipment near glass curtain walls and developed areas.
Support lab-to-hospital, remote-community, island and urgent parcel delivery programs with a purpose-built flight termination and recovery system.
Configure Your System
Speak with Unmanned Canada about AP100 compatibility, availability, supported configurations and the correct operational pathway for your mission.
