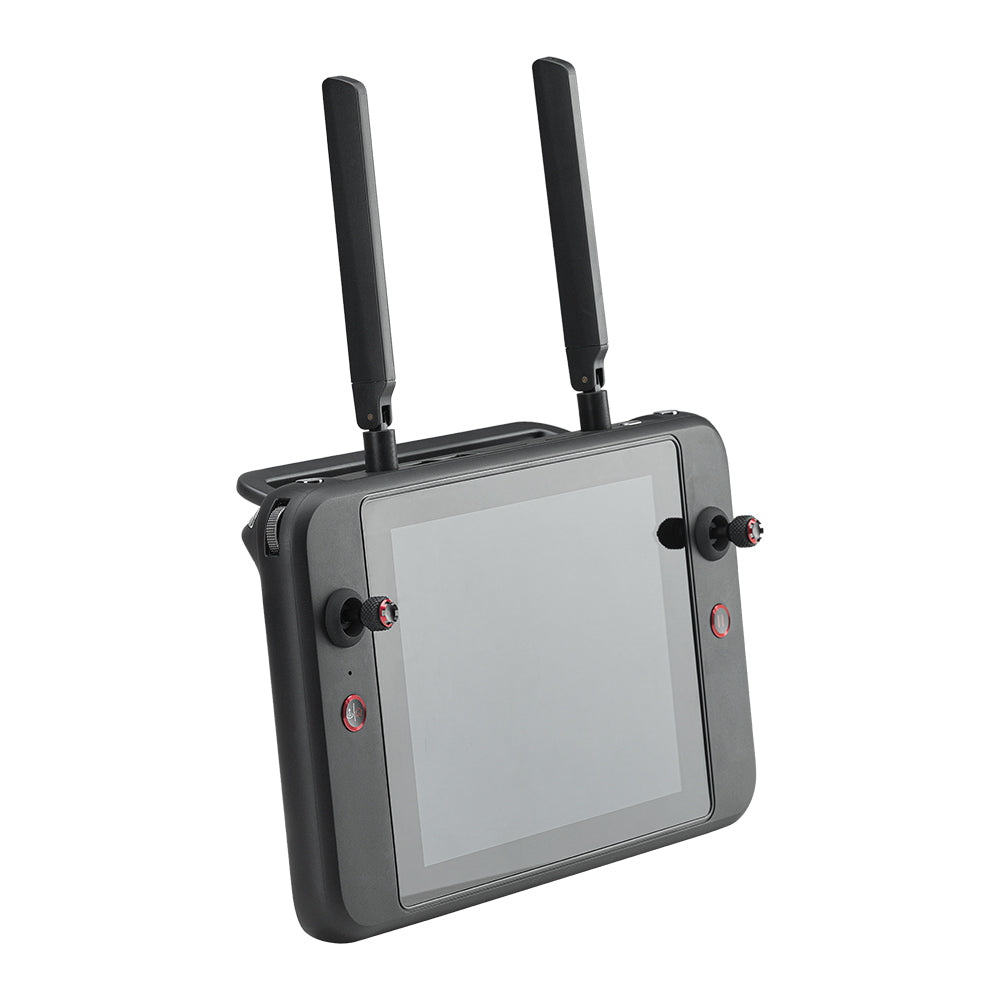

The Autel Smart Controller V3 is a purpose-built standalone enterprise ground control station featuring a 7.9" 2000-nit ultra-bright QHD touchscreen, SkyLink 2.0 tri-band transmission up to 15 km, and a 4.5-hour battery life — all in a rugged, portable form factor designed for demanding field operations. No phone or tablet required. Compatible with the full EVO II V3 Enterprise series. Available through Unmanned Canada, authorized Autel dealer.
7.9" QHD (2048×1536) touchscreen at 2000 nits — twice as bright as leading competitors and 4× brighter than a standard phone. Anti-glare coating ensures clear visibility under direct sunlight.
Tri-band 2.4 GHz / 5.8 GHz / 900 MHz communication with automatic frequency hopping for maximum anti-interference. 2.7K video within 1 km, 1080p HD up to 15 km.
5800 mAh lithium-ion battery delivers up to 4.5 hours of continuous operation at 50% brightness — covering full-day field deployments without recharging. Fast charges in 90 minutes.
Smooth 4K/60fps H.264 and H.265 video playback with 128 GB internal storage — no external storage required for media and flight logs.

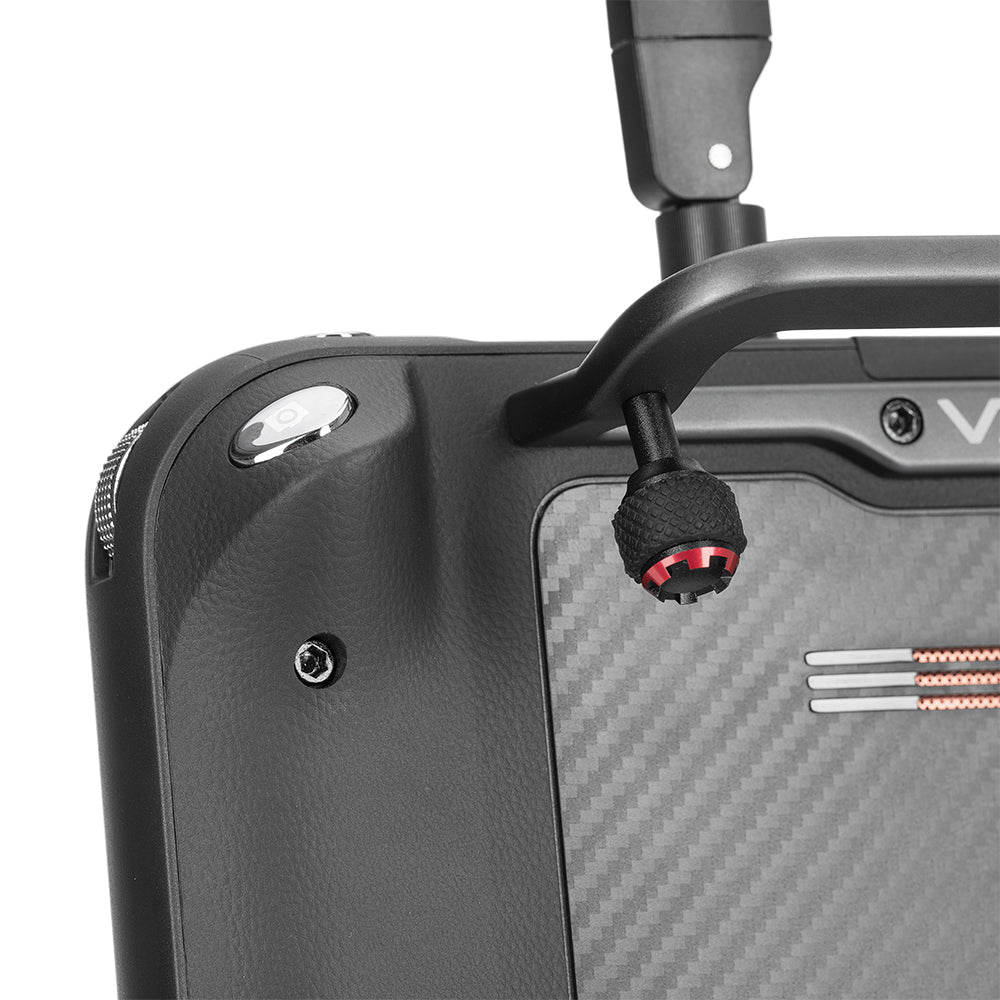

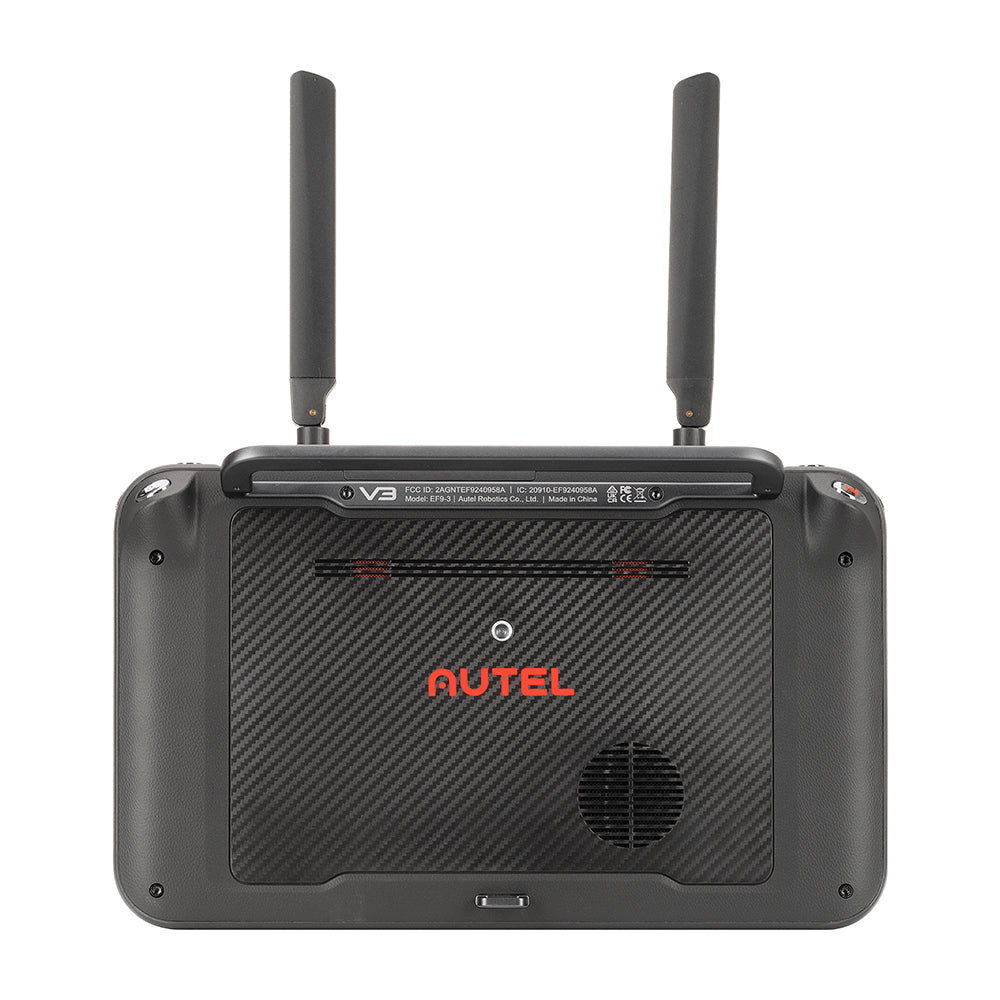

Reinforced composite back panel with 3D laser-engraved grip texture. IP43-rated for dust and water resistance. Removable control sticks for compact transport.
HDMI, USB-A, and USB-C ports for live streaming via 4G/5G network modules. SMA antenna connectors support third-party antenna upgrades for extended range configurations.
| Display | 7.9" QHD (2048×1536) @ 60fps, 2000 nits, anti-glare |
|---|---|
| Operating Frequency | 902–928 MHz (FCC only), 2.4 GHz, 5.725–5.850 GHz |
| Max Transmission Range | 15 km (FCC) / 8 km (CE) |
| Video Resolution | 2.7K @ 30fps within 1 km; 1080p HD up to 15 km |
| Processor | Qualcomm 8-core |
| Internal Storage | 128 GB ROM |
| Battery | 5800 mAh Li-ion — ~4.5 hr (50% brightness) / ~3 hr (max brightness) |
| Charging Time | 90 minutes |
| Operating Temperature | −20°C to +40°C (−4°F to 104°F) |
| IP Rating | IP43 |
| Dimensions | 303×190×87 mm (folded) / 303×273×87 mm (unfolded) |
| Weight | 1,150 g (without case) / 1,250 g (with case) |
| Ports | HDMI, USB-A, USB-C, SMA antenna connectors |
| Compatible Aircraft | EVO II Pro V3, EVO II Dual 640T V3, EVO II RTK Series V3, EVO II Enterprise V3 |
The Smart Controller V3 is compatible with the full EVO II V3 Enterprise series: EVO II Pro 6K V3, EVO II Dual 640T V3, EVO II RTK Series V3, and EVO II Enterprise V3. It is not compatible with the EVO Max series — contact Unmanned Canada to confirm compatibility with your specific platform.
No — the Smart Controller V3 is a fully standalone ground control station with a built-in 7.9" display. No external phone or tablet is required for flight operations.
Yes. The Smart Controller V3 runs a customized Android OS and supports third-party app installation, allowing integration with additional mission planning and data collection software beyond the Autel Sky App.
The Smart Controller V3 is the full enterprise model with a 7.9" 2000-nit display, 15 km range, and 128 GB storage. The Smart Controller SE is a more compact entry-level option. Contact Unmanned Canada for a side-by-side comparison and recommendation for your use case.
Yes — the SMA antenna connectors support third-party antenna upgrades. For maximum extended range, the Autel ASAT (Smart Antenna Transmission) System can extend operational range up to 100 km when paired with compatible enterprise platforms.
Yes — Unmanned Canada is an authorized Autel Robotics dealer and stocks the Smart Controller V3 for Canadian customers. Contact us for current availability, pricing, and bundle options with EVO II V3 Enterprise aircraft.
Contact Unmanned Canada for current availability, bundle pricing with EVO II V3 Enterprise aircraft, and Transport Canada compliance guidance.
