EVO II RTK V3

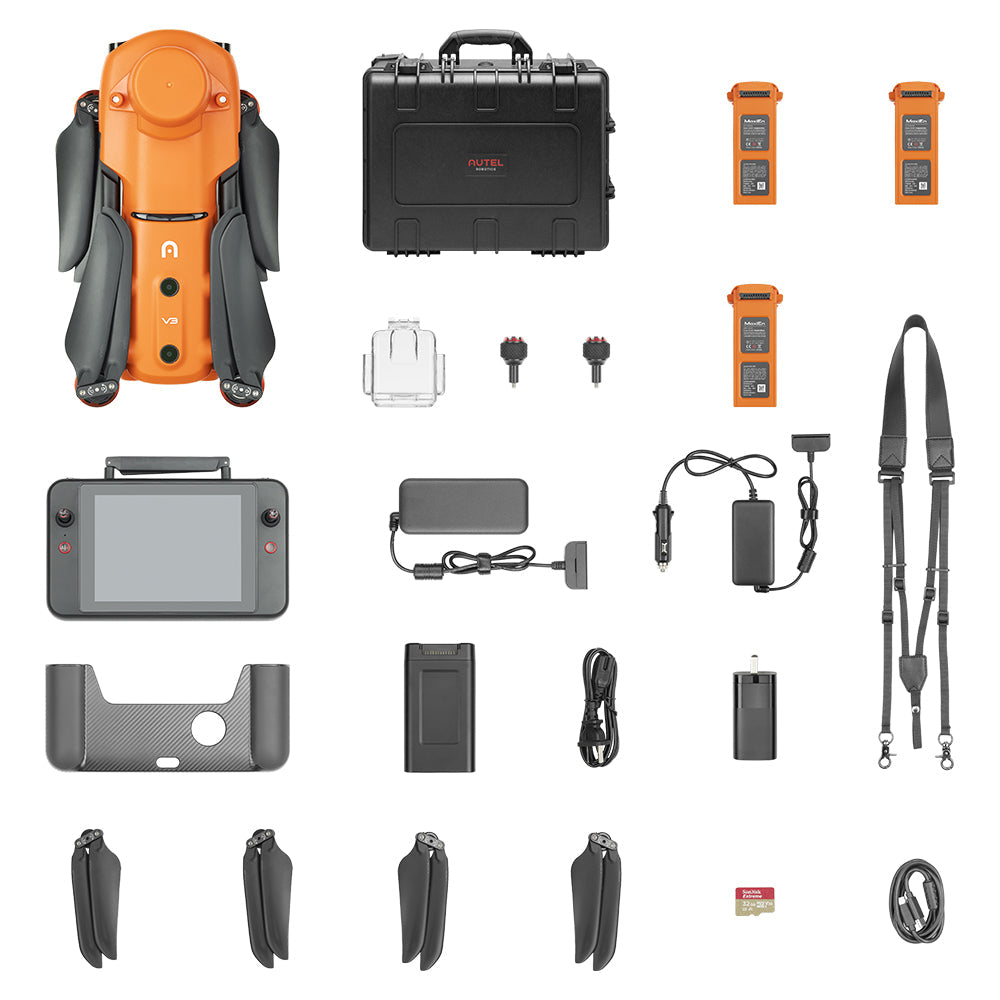

In the Box

Aircraft (Battery, Propeller, Gimbal cover, 32GB SD Card included)	1
Remote Controller (sticks included)	1
Spare Propellers (pairs)	2
Spare Control Stick (pair)	1
Spare Battery	2
RC Lanyard	1
RC Protective Case	1
Extended Port Cover	1
Car Charger	1
Multi-Charger	1
Protector Case	1
Quick start guides	6
Battery Charger + Power Cable	1
RC Charger	1
RC Charging Cable	1



The EVO II RTK Series V3 integrates an entirely new RTK module for 2022, which provides real-time centimeter-level positioning data in three minutes and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters and more. The positioning system supports RTK base station and NTRIP RTK network, which helps to achieve accurate and stable data acquisition in complex operating environments.

RTK Horizontal Positioning Accuracy: 1cm+1ppm

RTK Vertical Positioning Accuracy: 1.5cm+1ppm

· 5cm* absolute horizontal accuracy of photogrammetric models
*2.74 cm GSD when flying at 100 m height, Inertial Explorer for post-processing

No GCP Required: EVO II RTK Series V3 connects to NTRIP network and does not need GCPs to provide centimeter-grade accuracy.

3rd Party Base Station Support: EVO II RTK Series V3 supports all NTRIP compatible base stations.

Autel Explorer for Mapping

Multi-NTRIP Profile Saving

The Explorer app allows the user to create and save multiple NTRIP profiles for different locations without having to manually input account info every travel.

Photo Replication

For repeatable data acquisition missions, you can record the drone’s previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.

Multi-Battery Missions

The EVO II RTK Series V3 returns to where it left off in multi-battery missions without starting from the beginning.

Advanced Feature Sets

• Create Rectangular or Polygon Missions
• Supports Double grid mapping for additional angles
• Have complete manual control over camera settings
• Nonstop turning on corners saves time and battery life
• Customizable course headings to meet orientation requirements

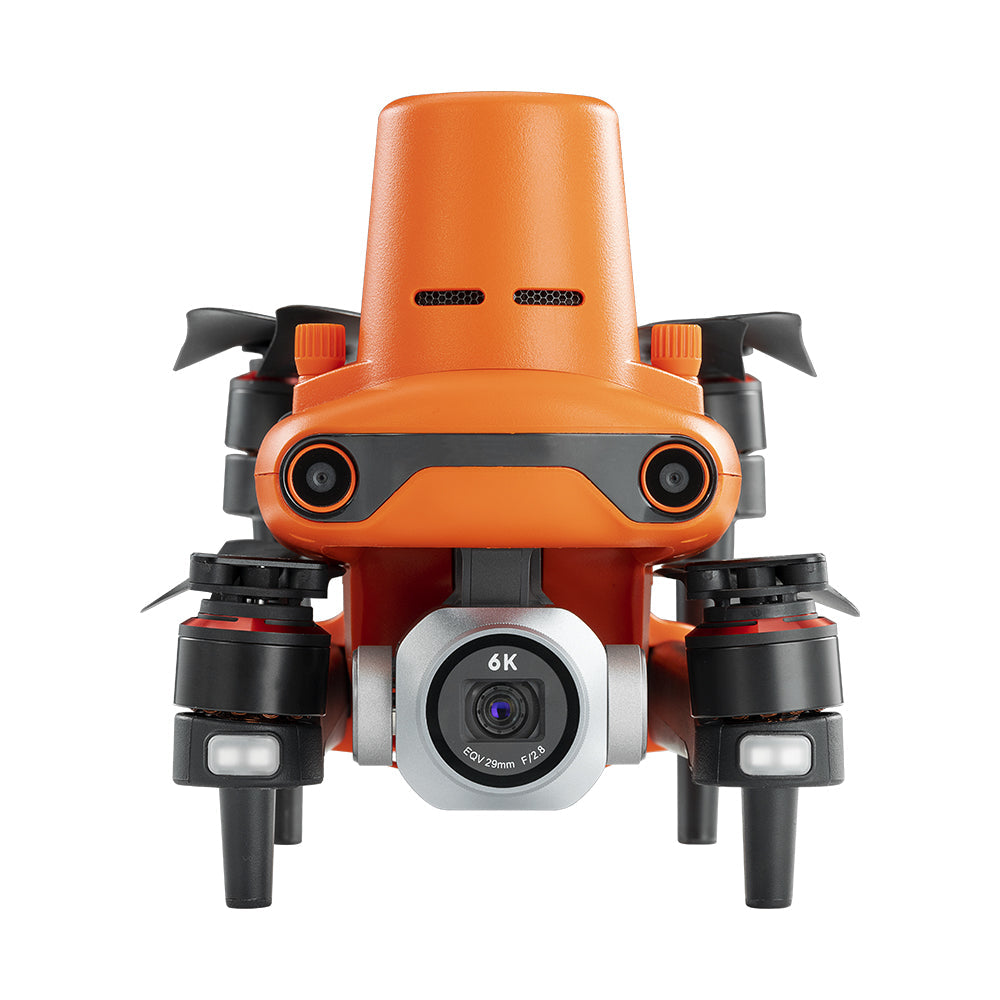

EVO II PRO RTK V3

Capture Every Detail

EVO II Pro RTK V3 has high dynamic range and powerful low-light performance, enabling users to capture clear detail sets with minimal distortion and noise.

1-Inch Ultra-Sensitive Sensor

The EVO II PRO RTK V3 comes with a NEW updated 1-inch 6K CMOS image sensor with a maximum of 20 megapixels. Thanks to the ultra-sensitive algorithm, you can still shoot clean, detailed, low-noise data sets under twilight or night conditions.

F2.8~F11 Adjustable Aperture

Adapt to lighting changes by adjusting the lens aperture size, giving the pilot more shutter speed control.

Optimized for Software Image Correction

EVO II PRO RTK V3 has optimized its datasets to be easily adjusted with post-processing software applications

Zoom in for the Details

EVO II PRO RTK V3 has optimized its datasets to be easily adjusted with post-processing software applications.

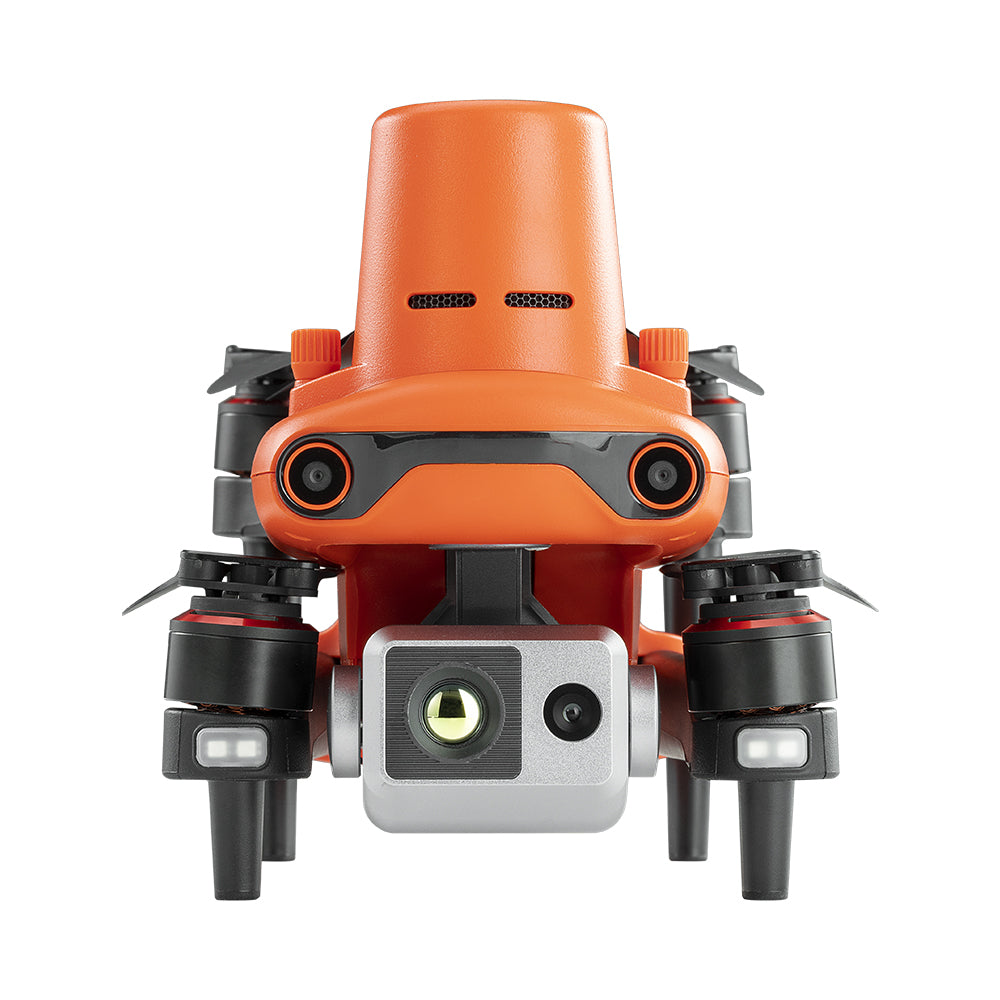

EVO II DUAL 640T RTK V3

Dual Cameras, Accurate Temperature Measurement

The EVO II Dual 640T RTK V3 is equipped with a high-resolution thermal imaging camera and an all new Sony .8" 50-megapixel RYYB sensor.

High-Resolution Thermal Imaging Sensor

The sensor features an industry-leading 640*512 high-definition thermal imaging resolution of 30hz.

Precise Temperature Measurement

The EVO II Dual 640T RTK V3 can accurately detect heat sources within a distance of 2-20 meters. By leveraging the compensation algorithm of infrared temperature measurement, the 640T RTK can regulate temperature deviations within 3 degrees Celsius.

New Image Processing Algorithm

The V3 system uses a brand new image processing algorithm, making thermal imaging details sharper and more discernible than the competition with a similar resolution and hardware.

30hz Refreshrate for Videogrammetry

The EVO II RTK Dual provides high refresh rates for accurate and detailed 3D thermal maps.

Zoom in for the Details

Zoom in on critical areas with EVO II RTK 16x digital zoom that supports 4x lossless zoom.

Multiple Color Palettes

White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Iron bow | Lava | Arctic | Searing | Gradation | Heat Detection.

SkyLink 2.0 Video Transmission

EVO II RTK Series V3 is upgraded with Autel's all-new SkyLink 2.0 Video Transmission technology.

Zoom in for the Details

Zoom in on critical areas with EVO II RTK 16x digital zoom that supports 4x lossless zoom.

Multiple Color Palettes

White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Iron bow | Lava | Arctic | Searing | Gradation | Heat Detection

Fly farther with HD video transmission up to 15km.

QHD

Obtain critical details with QHD video within 1km.

2.4G/5.8G/900MHz

Support tri-band communication and can automatically frequency hop for maximum anti-interference capability

*900MHz is only applicable for FCC countries.

360° Obstacle Avoidance

Equipped with 19 groups of sensors including 12 visual sensors, the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.

Portable and Easy to Use

Compact Design: The EVO II RTK Series V3 folds up for ease of transport and deployment.

Trouble-Free Daily Workflows: The EVO II 640T V3 takes 45 seconds from launch to takeoff without fuss

Safe and Sturdy

Lv 8 Wind Resistance

EVO II's Smaller Cross Section and powerful motors allow greater stability and control in all windy conditions.

No Fly Zones

EVO II RTK Series V3 does not have any no-fly zones and will not prevent the pilot from taking off

38 Minutes Flight Time

Enjoy up to 38 minutes of flight time - 20%~30% more than the next leading competitor for more area coverage and longer missions.

No Forced Updates

EVO II RTK Series V3 does not need to be on the latest hardware or app version in order to take off, unlike other competitors.

Autel Smart Controller V3

Smart Controller V3's 7.9-inch, 2000nit high-brightness screen is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 15km away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all-weather performance.

15km Transmission Range

Maximum 2000nit Brightness

4.5 Operating Hour

IP43 Resistance

Broadcast with Live Deck 2

Broadcast live mission intel to other personnel in the operation for enhanced situational awareness and critical decision-making. The EVO II Dual 640T V3 is compatible with Live Deck 2, which offer multiport streaming to monitors and Wifi support for multiple smartphones.

1080P Video Stream

IP43 Resistance

Three Auto-Switch Bands

12KM Transmission Range



	Specifications
Aircraft
Weight (with propeller and battery)	2.75 lbs (1250g) EVO II DUAL 640T RTK V3 2.73 lbs (1237g) EVO II PRO RTK V3
Size	230*130*143mm（folded） 260*355*143mm（unfolded）
Max flight time	36 min (Windless environment)
Operating temperature range	14-104°F (-10-40°C)
Wind Resistance	Force 8 wind
Hovering accuracy	When RTK is enabled and RTK works normally: Vertical: ± 0.1m Horizontal: ± 0.1m
	RTK is not enabled: Vertical: ±0.1m (with visual positioning in normal operation) ±0.5m (with GNSS in normal operation) Horizontal: ±0.3m (with visual positioning in normal operation) ±1.5m (with GNSS in normal operation)
GNSS
Single frequency high sensitivity GNSS	GPS + BeiDou+Galileo (Asian Region) GPS + GLONASS + Galileo (Other Region)
Multi-frequency multi-system high-precision RTK GNSS	Frequency points used: GPS: L1/L2 GLONASS: L1/L2 BeiDou: B1/B2 Galileo:E1/E5
	First positioning time: <50s
	Positioning accuracy: Vertical: 1.5cm + 1ppm* (RMS) Horizontal: 1cm + 1ppm (RMS) *1ppm means that the error increases by 1mm for every 1km of the aircraft moving
RC and Image Transmission
Max Transmission Distance (unobstructed, free of interference)	FCC：15km CE：8km
Display screen	2048x1536 60fps
Operating time	~3 hours (Max. Brightness) ~4.5 hours (50% Brightness)
Charging time	120 minutes
Internal Storage	ROM 128GB
EVO II Pro RTK V3 Camera
Sensor	1 inch CMOS; 20M pixels
Lens	FOV: 82° 35 mm format equivalent focal length: 29 mm Aperture: f/2.8 - f/11 Focus range: 0.5 m to infinity
ISO range	Video: 100-44000 Photo: 100-6400
Zoom	1-16x (up to 3x lossless zoom)
Maximum photo size	5472*3648 (3:2) 5472*3076 (16:9) 3840*2160 (16:9)
Photo mode	5472x3076P30/P25/P24 3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P60/P50/P48/P30/P25/P24
EVO II Dual 640T RTK V3 Visual Camera
Sensor	1/1.28"(0.8") CMOS; 50M effective pixels
Lens	FOV: 85° 35 mm format equivalent focal length: 23 mm Aperture: f/1.9 Focus range: 0.5 m to infinity (with auto focus)
ISO range	Video: 100-64000 Photos: 100-6400
Zoom	1-16x (up to 4x lossless zoom)
Maximum photo size	8192*6144（4:3） 4096*3072（4:3） 3840x2160（16:9）
Video resolution	3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P60/P50/P48/P30/P25/P24
EVO II Dual 640T RTK V3 Thermal Camera
Lens	FOV H33°V26°
	Focal length 13mm
Zoom	1-16x
Wavelength range	8~14μm
Temperature measurement accuracy	±3℃ or ±3% of reading (whichever is greater) @Environmental temperature-20℃~60℃
Accurate temperature measurement distance	2-20 meters
Video resolution	640x512@30fps
Photo resolution	Infrared mode: 640*512 Picture-in-picture mode: 1920*1080, 1280*720
