Autel Robotics

Autel Robotics EVO II Pro V2 6K

Autel Robotics EVO II Pro V2 6K

$2,409.00 CAD
$2,409.00 CAD
Sale Sold out
Size

Autel Robotics EVO II Pro V2 6K

In the box:

Autel EVO II Pro V2:

Autel EVO II Pro V2- 6K Drone
Remote Controller
7100mAh Battery

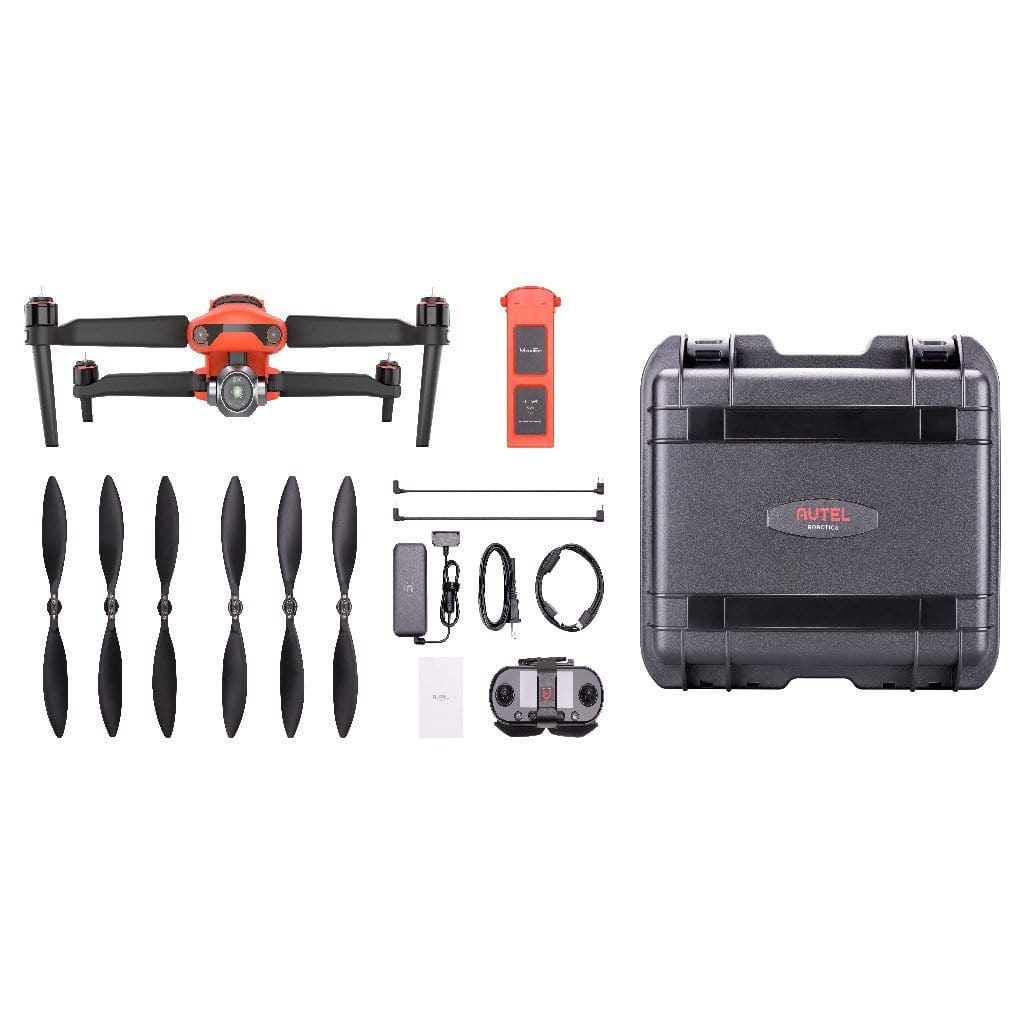

Autel EVO II Pro Rugged Bundle:

EVO II Pro Aircraft
6x Propellers (3 Total Pairs)
Intelligent Battery
Spare Intelligent Battery
Remote Controller
Power Cable B
2x USB Connection Cable Micro Type
B & Type C
Charger
Gimbal Cover
Hard Case
User Guide
Autel Robotics 1 Year Limited
Warranty

1" CMOS sensor enables superior image quality even in low-and limited-lighting conditions.

Supporting video resolutions up to 6K with greater dynamic range, and stronger noise, the EVO II Pro uses the Sony's latest generation of supersensitive CMOS sensor to achieve impressive low-light photography.

f/2.8-f/11 adjustable aperture. Adaptability and versatility for every lighting environment

The EVO II Pro's advanced camera settings include an adjustable aperture range of f2.8 to f11 and a maximum ISO of 12,800 enabling the photographer to produce images of exceptional precision and sharpness.

10-bit, A-Log Color mode allows for greater flexibility in post-production for the professional photographer

10-bit allows the EVO II Pro to record up to 1 billion colors. The EVO II Pro retains rich detail in shadows and highlights, allowing greater flexibility in post-production.

4K HDR: Enhancing Original Scenes

EVO II supports 4K HDR recording to enhance contrast and color.

Capture the
night time world

Hyper-light feature designed for shooting in low-light conditions with 2D and 3D noise reduction smoothing motion blur and reducing noise.

LiveDeck: Stream Anywhere

No one but Autel offers Hyper-lapse photography in 6K

EVO II supports multi-port HDMI real-time output to meet the requirements of projection monitoring and live streaming.

You can enjoy your favorite moments at any time, free from post-processing as 8K mobile time-lapse as video can be exported right after recording, and JPEG/RAW format are also supported.

360° Obstacle Avoidance

Equipped with 19 groups of sensors including 12 visual sensors, the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.

Dynamic Track 2.0

EVO II can model location and speed of targets simultaneously, predict their trajectory accurately, and track them continuously while identifying up to 64 objects at the same time.

Maximum Performance

  • Maximum
    Flight Time

    40minutes

    EVO II series flies for up to 40 minutes.

  • Maximum
    Transmission Range

    5.5miles

    Fly up to 5.5miles (9km) away from the pilot's location with confidence in video and telemetry transmission.

  • Maximum
    Wind Resistance

    39mph (17m/s)

    Fly in virtually any wind condition (urban or rural) with confidence, ensuring a successful mission.

  • Maximum
    Flight Speed

    45mph

    With speeds of up to 45mph (20 m/s), the EvoII arrives quickly and efficiently.

Accessories

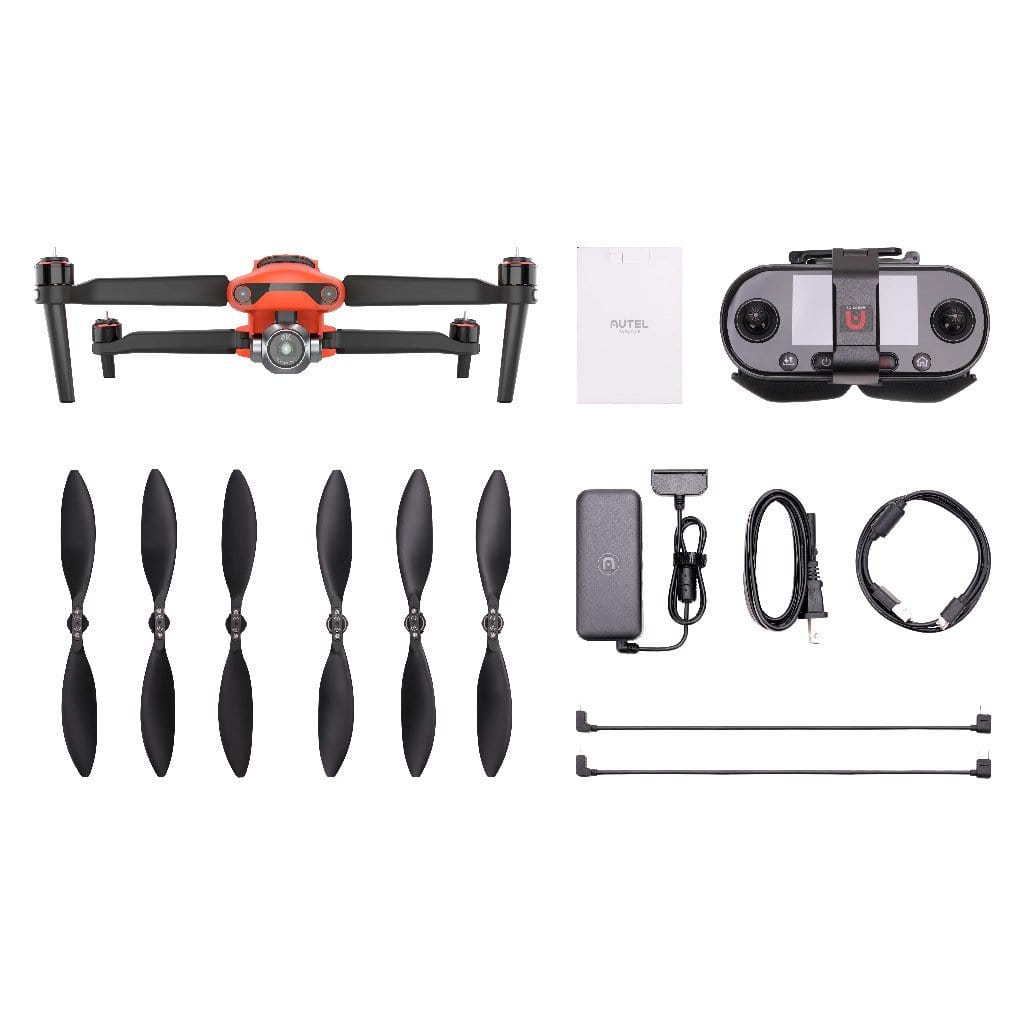

In the Box:

Aircraft, Battery and Gimbal Holder
Remote Control
Charger
Remote Control Cable - Type B
Propellers (pairs)
USB connection cable (2pcs: Micro Type B & Type C)
Packing List
Quick Guide
Disclaimer & Safty Instructions
Battery Safe Use Guide

Specifications:

Camera

Image Sensor 1" CMOS
Pixels 20MP
Perspective 82°
Lens EFL: 28.6 mm
Aperture: f/2.8–f/11
Focus Distance: 1m to any distance (with autofocus mode)
ISO Range Video: 100-6400 (auto)
Photo: 100-12800 (auto)
Zoom 1-8x (Max 3x lossless)
Still Photography Modes

Single Shot
Burst shooing: 3/5 frames
Automatic Exposure Bracketing (AEB)：
3/5 bracketed frames at 0.7 EV Bias
Timelapse：
     JPG：2s/5s/7s/10s/20s/30s/60s
     DNG：5s/7s/10s/20s/30s/60s
HyperLight：support (under 4K JPEG format）
Long Exposure: Max 8s
HDR imaging: (under 4K JPEG)
Still Photography Resolution 8000*6000 (4:3)
7680*4320 (16:9)
4000*3000 (4:3)
3840*2160 (16:9)
Video Format MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Video Resolution 6K 5472*3076 p30/p25/p24
4K 3840*2160 p60/p50/p48/p30/p25/p24
2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24
1080p 1920*1080 p120/p60/p50/p48/p30/p25/p24
Max Bitrate 120Mbps

Aircraft



Takeoff Weight 2.6 lbs (1191 g)
Max Takeoff Weight 4.4 lbs (2000 g)
Diagonal Wheelbase 15.6 inches (397 mm)
Aircraft Battery 7100 mAh
Max Flight Time (standard) 40 min
Max Hovering Time (standard) 35 min
Max Level Flight Speed (Standard) 45 mph (20 m/s) (Ludicrous)
Max Ascent Speed 18 mph (8 m/s) (Ludicrous)
Max Descent Speed 9 mph (4 m/s) (Ludicrous)
Max Takeoff Altitude 4.3 miles (7000 m)
Max Wind Resistance Force 8 wind
Operating Environment Temp 32-104°F (0-40°C)
Working Frequency (2.4G) 2.4~2.4835GHz
Transmission Power (2.4G) 2.4~2.4835GHz
FCC: ≤26 dBm
ISED: ≤26 dBm
CE: ≤20 dBm
RCM: ≤20 dBm
SRRC: ≤20 dBm
Hover Precision Vertical:
± 0.02m (with visual positioning in normal operation)
± 0.2m (with GPS in normal operation)
Horizontal:
± 0.02m (with visual positioning in normal operation)
± 0.2m (with GPS in normal operation)

Sensing System



Sensing System Type Omnidirectional Binocular Sensing System
Forward Accurate Measuring Range: 0.5 - 20m
Detection Range: 0.5 - 40m
Effective Sensing Speed: < 15 m/s
FOV: Horizontal: 60°, Vertical: 80°
Backward Accurate Measuring Range: 0.5 - 16m
Detection Range: 0.5 - 32m
Effective Sensing Speed: < 12 m/s
FOV: Horizontal: 60°, Vertical: 80°
Upward Accurate Measuring Range: 0.5 - 12m
Detection Range: 0.5 - 24m
Effective Sensing Speed: < 6 m/s
FOV: Horizontal: 65°, Vertical: 50°
Downward Accurate Measuring Range: 0.5 - 11m
Detection Range: 0.5 - 22m
Effective Sensing Speed: < 6 m/s
FOV: Horizontal: 100°, Vertical: 80°
Sides Accurate Measuring Range: 0.5 - 12m
Detection Range: 0.5 - 24m
Effective Sensing Speed: < 10 m/s
FOV: Horizontal: 65°, Vertical: 50°
Service Environment Textured/patterned ground and adequate illumination (> 15 lux, normal indoor environment with fluorescent lamp on)
Upward: diffuse reflecting surface with reflectivity above 20% (wall, tree, human, etc.)
Downward: textured/patterned ground and adequate illumination (> 15 lux, normal indoor environment with fluorescent lamp on)
Upward: diffuse reflecting surface with reflectivity above 20% (wall, tree, human, etc.)

Gimbal



Operation Range Pitch: -135° to +45°
Yaw: -100° to +100°
Operation Range Pitch: -90° to +30°
Yaw: -90° to +90°
Stability More Stable with 3 Axies
Max Control Speed (Tilt) 300°/s
Angular Vibration Range (°) ±0.005°

Remote Controller and Transmission



Max Signal Transmission Distance 9km FCC, 5km CE
Working Frequency (2.4G) 2.4~2.4835GHz
Transmission Power (2.4G) 2.4~2.4835GHz
FCC: ≤26 dBm
ISED: ≤26 dBm
CE: ≤20 dBm
RCM: ≤20 dBm
SRRC: ≤20 dBm
Real-Time Transmission Quality 720p@30fps / 1080p@30fps
Max Bitrate of Real-time Transmission 40Mbps
Remote Controller Battery 5000mAh
Operating Hours 3h
Charging Time 2h Fast Charging
Display 3.26-inch OLED screen
854 (W)*480 (H) pixels
Preview video without the need for connecting to a mobile phone
1.7A@3.7V

Battery



Battery (mAh) 7100mAh
Voltage (V) 11.55
Transmission Power (2.4G) 13.2
Battery Type LiPo 3S
Battery Energy 82Wh
Weight (g) 365
Charging Temperature Range (°C) 5~45℃
Storage Temperature & Humidity -10~30℃，65±20%RH
Recommended Storage Temperature 22~28℃
Max Charging Power Consumption (W) 93W
Charging Time 90min

Charger



Input 100-240 V, 50/60 Hz, 1.5A
Output 13.2 V ⎓ 5 A
5V⎓3A 9V⎓2A 12V⎓1.5A
Voltage 13.2 ± 0.1 V
Rated Power 66 W

APP



iOS Autel Explorer
Android Autel Explorer

Storage



SD Storage Standard: 32 GB,
max. support 256GB （ UHS-3 rating required ）
Internal Storage 8GB

Out of stock
