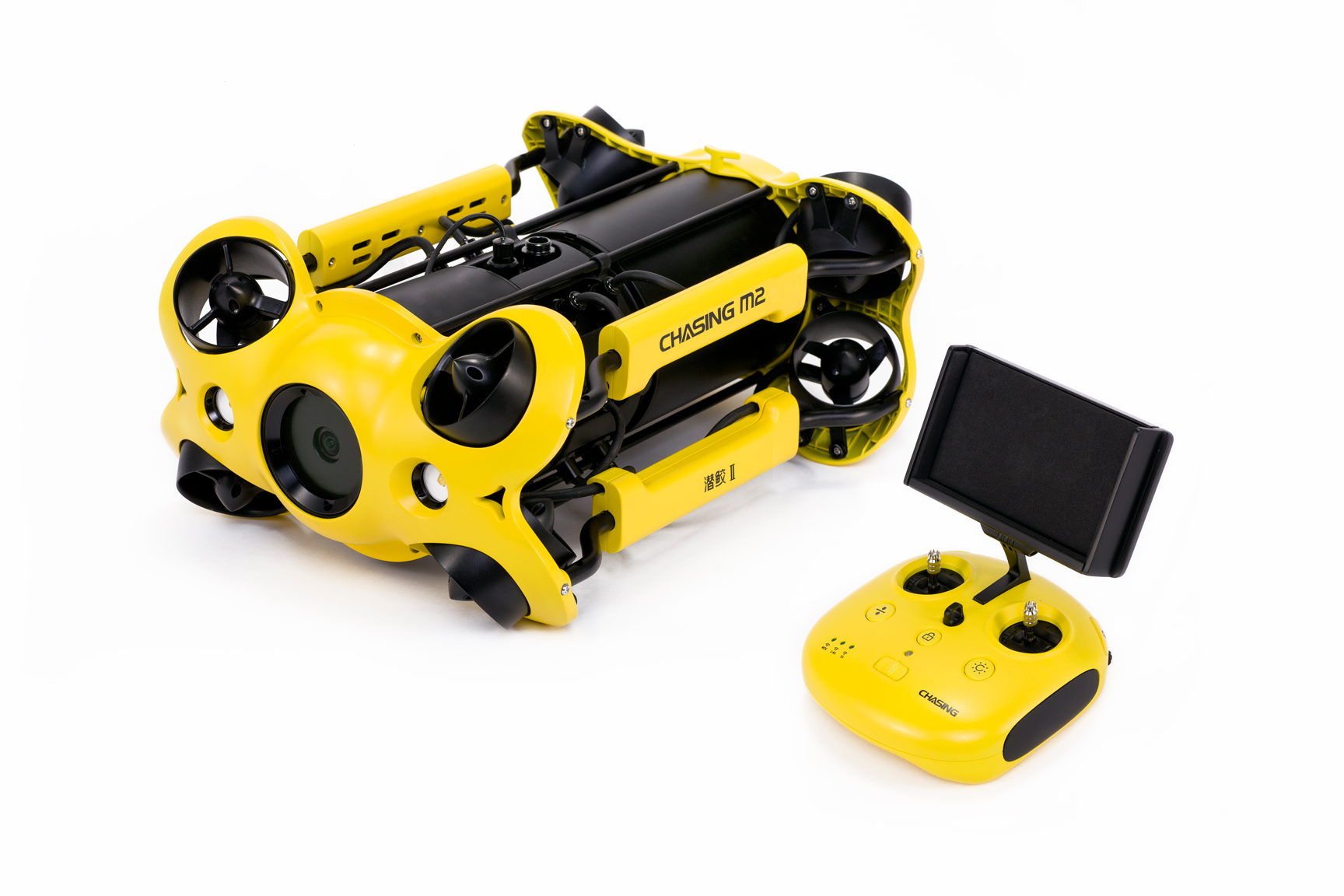

CHASING M2 ROV

Industrial Application

• Scientific Exploration

• Underwater Photography

• Hull & Dock Inspection

• Aquaculture Inspection

• Search and Rescue

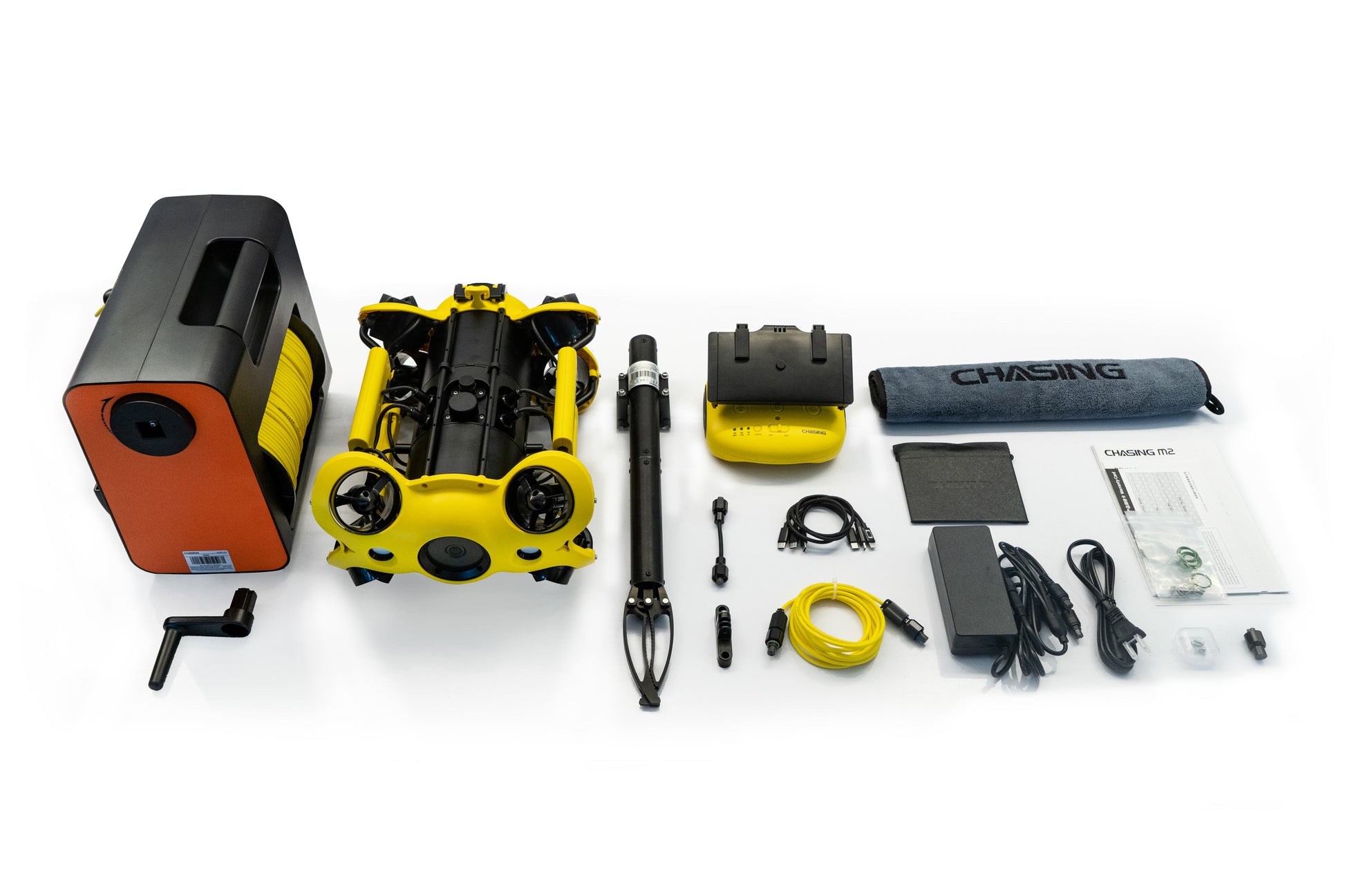

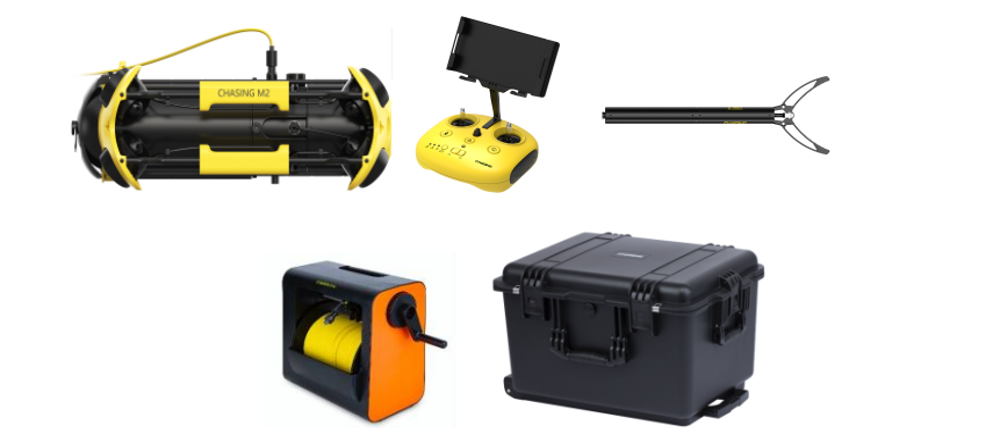

Accessories Guide

OMNI Movement
Swappable Battery
3 Knots Speed
Dive To 330ft
4K UHD EIS Camera
Sophisticated Attachments
Anti-Stuck Motor
Removable SD Card

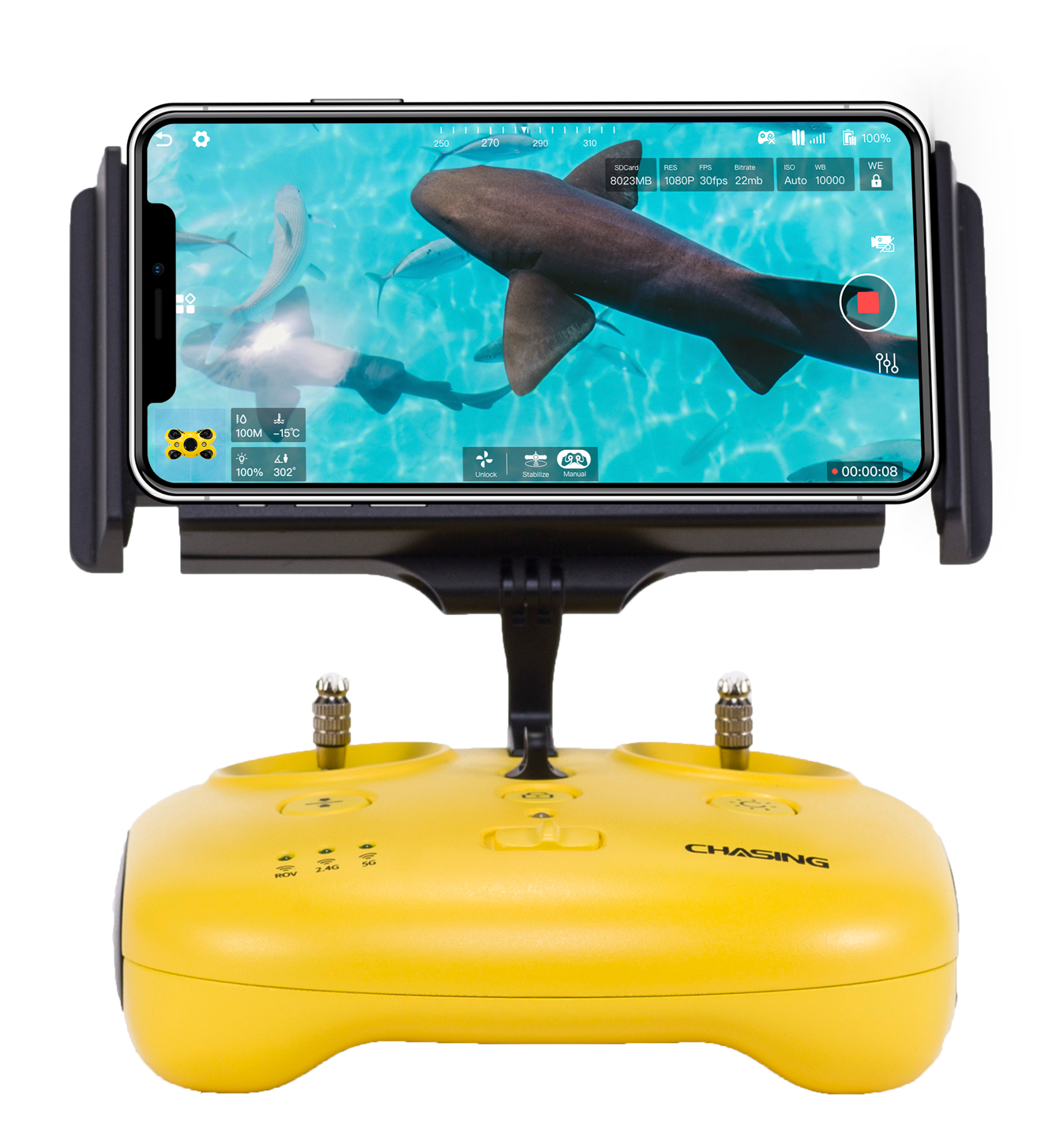

User Friendly Interaction

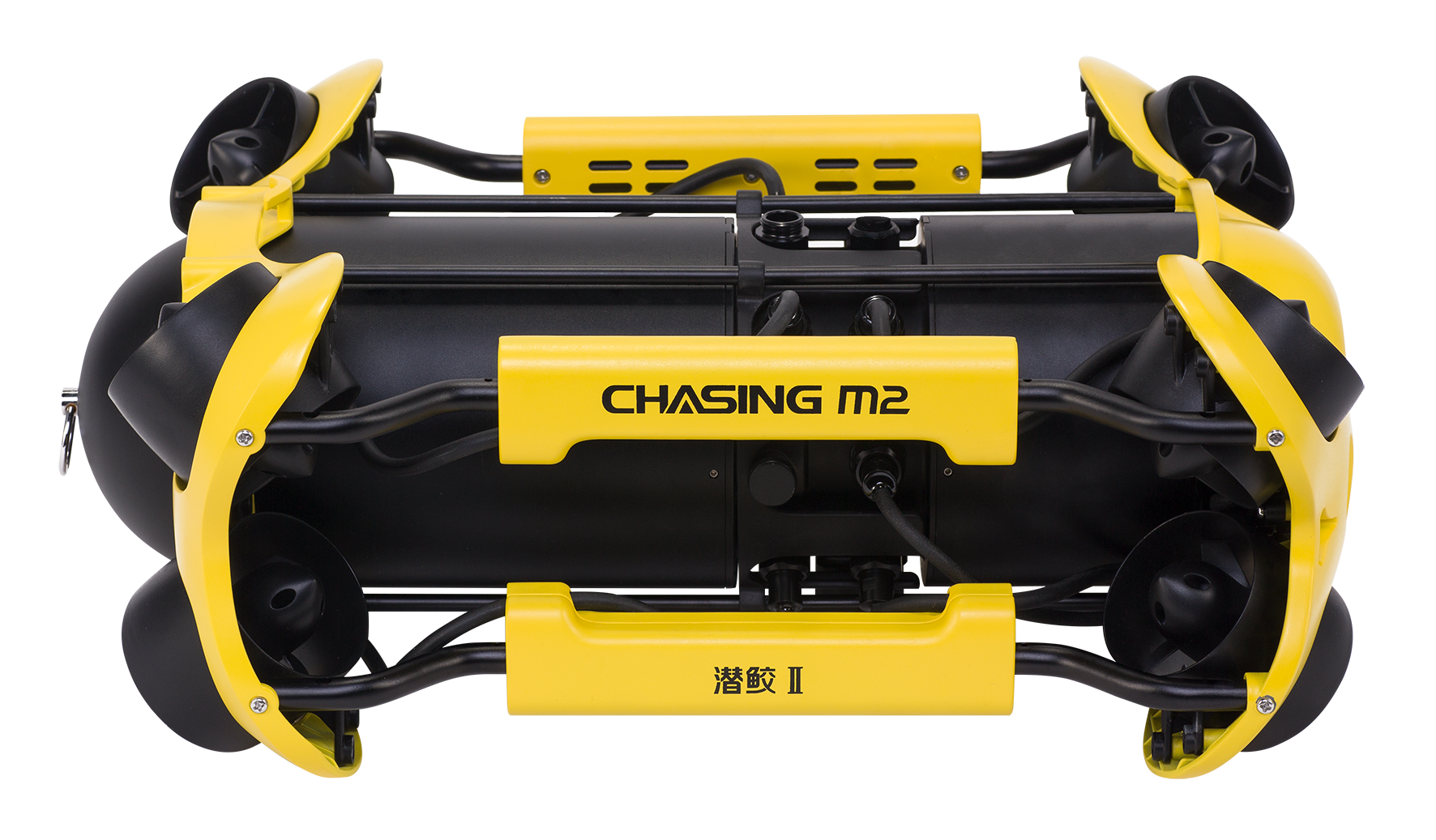

8 Vectored-Thrusters Layout, Omni Movement

M2 has 8 Vectored Thrusters layout which allows OMNI movement in all directions. The aluminum alloy compact body allows single person operation and quick-deployment in 3 minutes.

• Forward and Backward



• Floating and Diving



• Laterally Translate



• Turn Left / Right



• ±90° Pitch and Tilt



• Rolling 360° ( Side-to-side & Forward and back)



Sophisticated Attachments

Compatible with sophisticated attachments such as Robot Claw, GoPro camera, external LED lights and laser scaler etc. The maximum attachable capacity is 1.5kg (3.3 lbs) , design for many different industry needs.

• Swappable Battery

  The default 97.68WH lithium battery (2-4 hours dive time) , Optional 200WH Battery, CHASINGS swappable battery will make your operation time unlimited.



• Anti-Stuck Motor

  The patented Anti-Stuck Motor technology is adopted to greatly reduce the failure probability of the motor getting stuck in the sand, and it can operate safely and reliably in all kinds of complicated underwater environments.



• Multi-Angle Shooting and Accurate Hover

  M2 can hover accurately in any attitude with one touch Depth-Lock Mode and used for shooting, observation and operation from any Angle.



• Accurate Recording of Temperature Depth in Real Time

  M2 can record underwater temperature, depth, to provide you with professional underwater data support.



100 Meters

Maximum working depth

-10℃~45℃

Operating temperature

1.5 m/s (3 Knots)

Maximum speed

2-4 Hours

Runtime

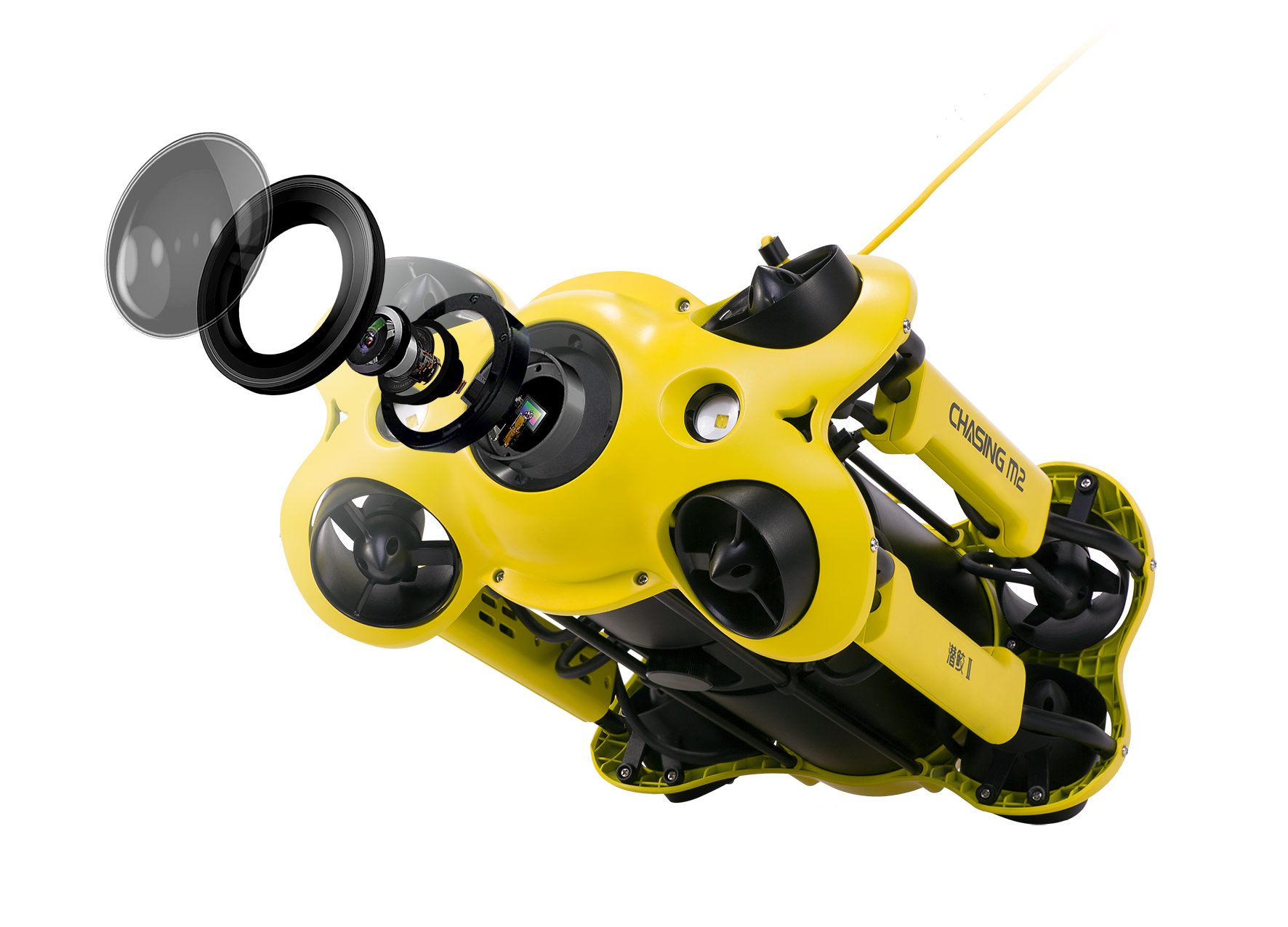

4K EIS Image Stabilization Camera

M2 offers F1.8 FOV, equipped with 1/2.3 SONY CMOS and EIS anti video-shake feature, which improves the camera's low light performance and dynamic range greatly.

• 4K

  Video resolution

• 12M

  Max. photo pixel

• 152°

  FOV

• F1.8

  Lens

Removable SD Memory Card, Download Anytime and Anywhere

The 64G SD memory card is removable, and users can choose SD cards of different capacities, up to 512G.
